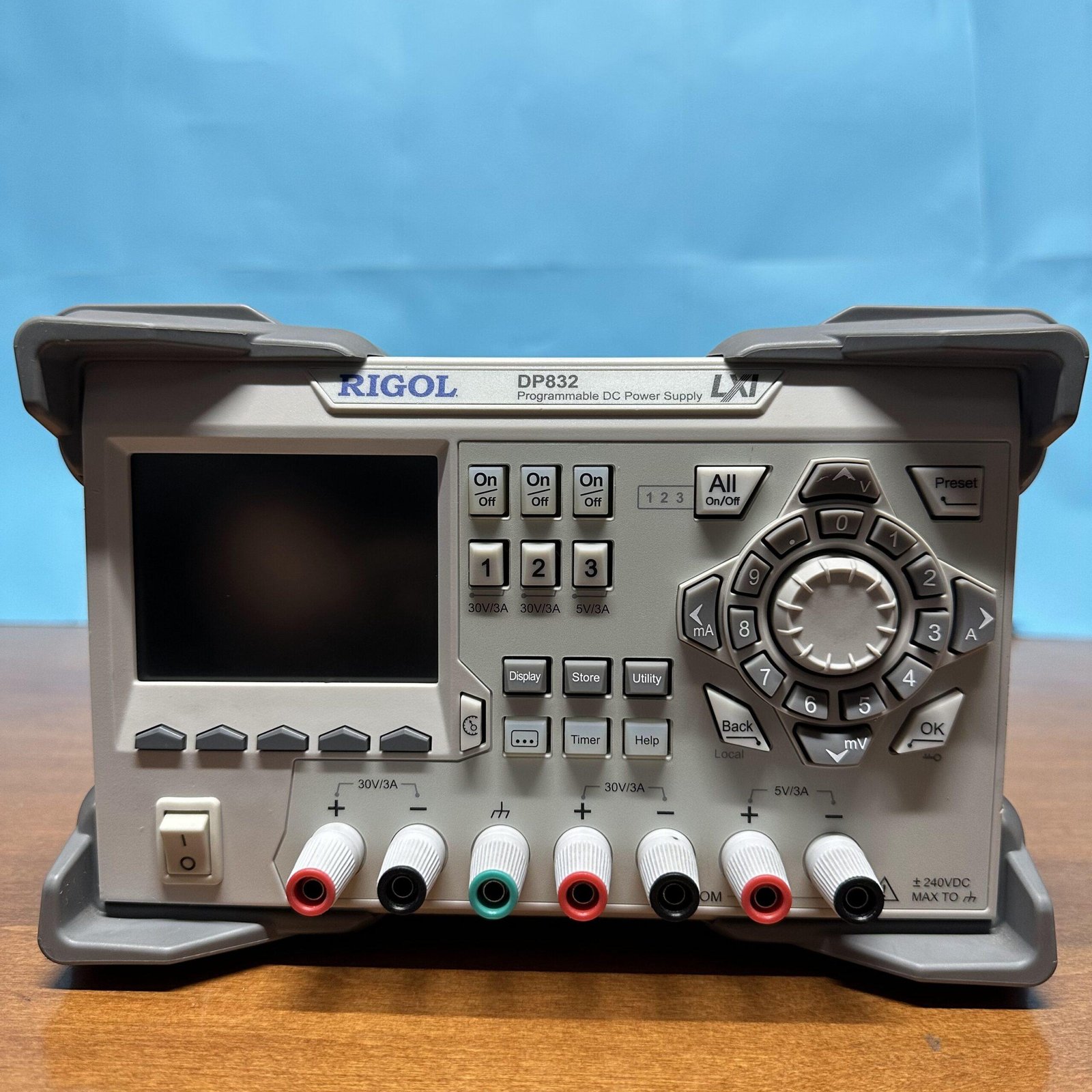

Rigol DP832 Programmable Linear DC Power Supply 195W

The Rigol DP832 is a programmable linear triple-output DC power supply engineered for benchtop electronics testing, educational labs, and embedded system prototyping. Providing up to 195 W of total output power across three isolated channels, it combines low ripple noise with precise digital control and real-time monitoring features.

Rigol DP832 Channel Architecture and Power Output

The unit features three independent, isolated outputs designed to handle diverse circuit requirements simultaneously:

• Triple Isolated Outputs: Channels 1 and 2 deliver 0 to 30 V at up to 3 A each. Meanwhile, Channel 3 provides 0 to 5 V at up to 3 A. Consequently, technicians can power analog sections and low-voltage digital logic rails from a single supply.
• Low Noise and Ripple: As a linear supply, it maintains exceptionally clean power delivery with ripple and noise under 350 uVrms / 2 mVpp. Therefore, it shields sensitive RF and mixed-signal circuits from unwanted switching noise.
• Transient Response Performance: The regulation circuits recover in under 50 microseconds following load transitions. As a result, supply rails remain stable during sharp current pulses.
• Independent Circuit Isolation: All three channels are electrically isolated from one another. Thus, users can wire outputs in series or parallel to expand voltage or current limits safely.

Monitoring, Control, and Hardware Design

The benchtop supply integrates comprehensive analysis tools directly into its front-panel interface:

• High-Resolution Color Display: A 3.5-inch TFT LCD simultaneously displays numeric voltage, current, and wattage alongside live real-time V/A/W trend waveforms.
• Built-in Timing and Waveform Output: Operators can program stepped voltage profiles, ramp functions, and automated delay sequences directly through the front panel or via remote scripting.
• Advanced Protection Protocols: Hardware-level Over Voltage (OVP), Over Current (OCP), and Over Temperature (OTP) safeguards immediately cut output to protect connected loads from damage.
• Connectivity and Automation: Standard USB Host and USB Device ports support PC automation and firmware updates. Furthermore, it supports standard SCPI command sets for seamless test automation.

Industrial Applications and Testing Utility

The system accommodates diverse electronics development workflows. Specifically, it supports microcontroller prototyping, IoT sensor validation, battery charging characterization, and quality control bench testing. In addition, its intuitive dial-and-keypad controls allow fast benchtop adjustments during manual troubleshooting.

Ultimately, the Rigol DP832 programmable linear DC power supply delivers an adaptable, low-noise power foundation for design engineers, educational institutions, and electronics repair laboratories.
