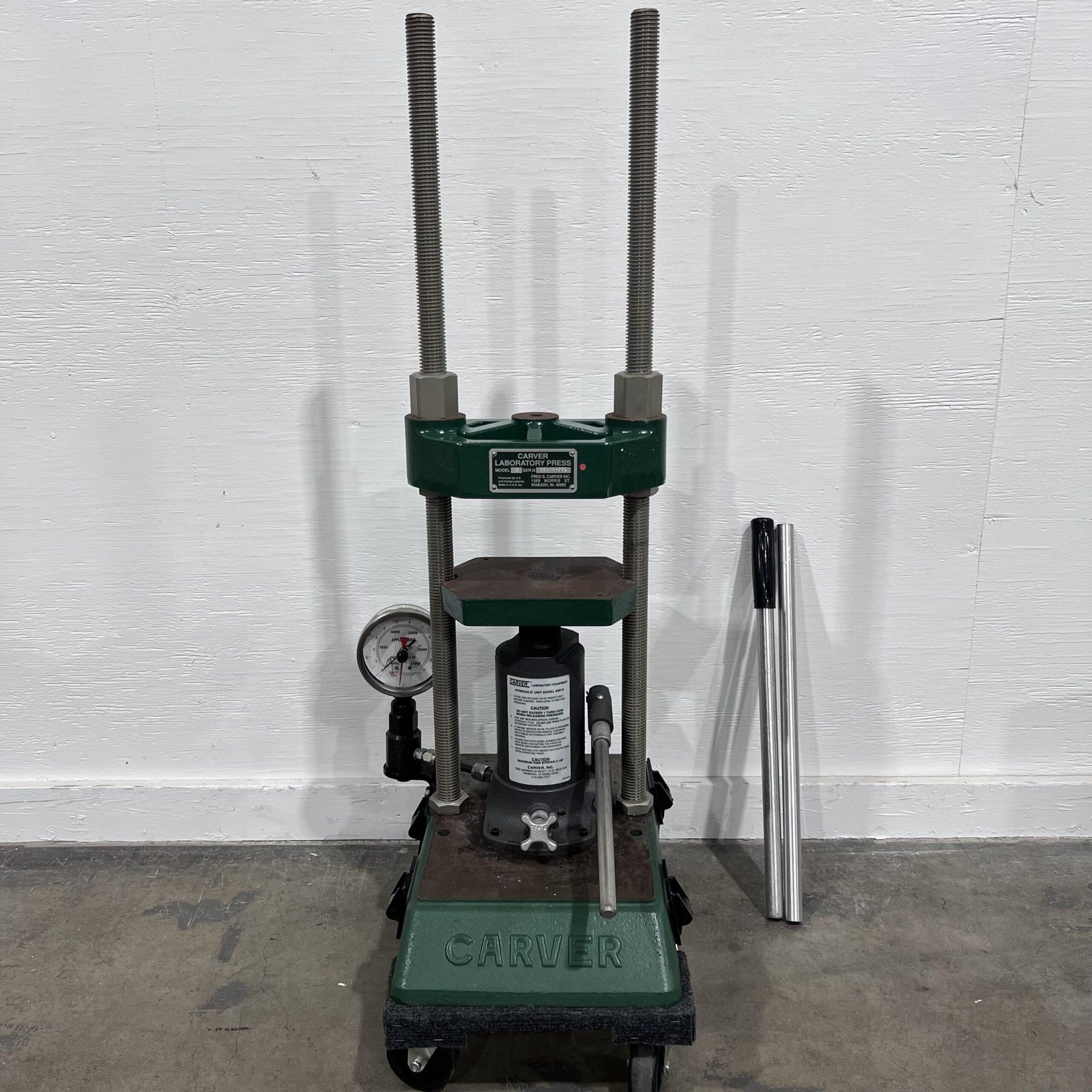

Carver Model C Press 12-Ton Hand Hydraulic
The Carver Model C Press is an industry-standard benchtop unit engineered for sample preparation, material research, and quality assurance workflows requiring up to 12 tons (24,000 lbs / ~107 kN) of clamping force. Specifically, renowned for its mechanical reliability and straightforward operation, this hydraulic press provides researchers and technicians with precise manual pressure control in academic, pharmaceutical, and industrial analytical environments.
Design Features of the Carver Model C Press
The press features a rigid, heavy-duty two-column frame that maintains parallelism under maximum load. In addition, its threaded steel columns allow quick vertical daylight adjustment to accommodate various die sets, test fixtures, and custom tooling heights. Operators manually pump the hydraulic hand lever to ramp pressure smoothly up to the desired setpoint. As a result, the system holds the load stably during compaction. Furthermore, an eye-level dual-scale analog gauge displays applied hydraulic force, ensuring repeatable force application across testing cycles.
Key Technical Specifications
| Specification | Details |
| Clamping Capacity | 12 US Tons (24,000 lbs / 107 kN) |
| Actuation System | Manual hand hydraulic pump with quick-release valve |
| Platen Dimensions | 6″ x 6″ (152 mm x 152 mm) ground steel platens |
| Vertical Daylight | Adjustable up to 7″ (178 mm) via threaded uprights |
| Stroke Length | 5.125″ (130 mm) standard ram travel |
| Pressure Readout | Dual-scale analog gauge (force / system pressure) |
| Form Factor | Self-contained benchtop unit |
Common Applications for the Carver Model C Press
- Spectroscopy Sample Preparation: For example, operators compact ground materials mixed with potassium bromide (KBr) into clear, thin disks for Fourier-transform infrared (FTIR) transmission analysis.
- X-Ray Fluorescence (XRF): In addition, technicians press mineral, cement, and chemical powders into dense, homogenous pellets using standard briquetting dies.
- Polymer & Composite Evaluation: Furthermore, labs utilize the Carver Model C Press for small-scale compression molding, resin curing studies, and laminate bonding trials.
- Powder Metallurgy & Ceramics: Finally, it aids in researching green strength, binder efficacy, and compaction behavior in dry particulate systems.
Maintenance and Operational Benefits
Because the Carver Model C requires no electrical connections, technicians can easily move it across workbenches or place it inside containment hoods and dry-boxes. Consequently, routine maintenance only requires basic hydraulic seal inspections, periodic fluid checks, and platen cleaning. Therefore, its mechanical simplicity minimizes downtime and eliminates electronic calibration drift entirely.
