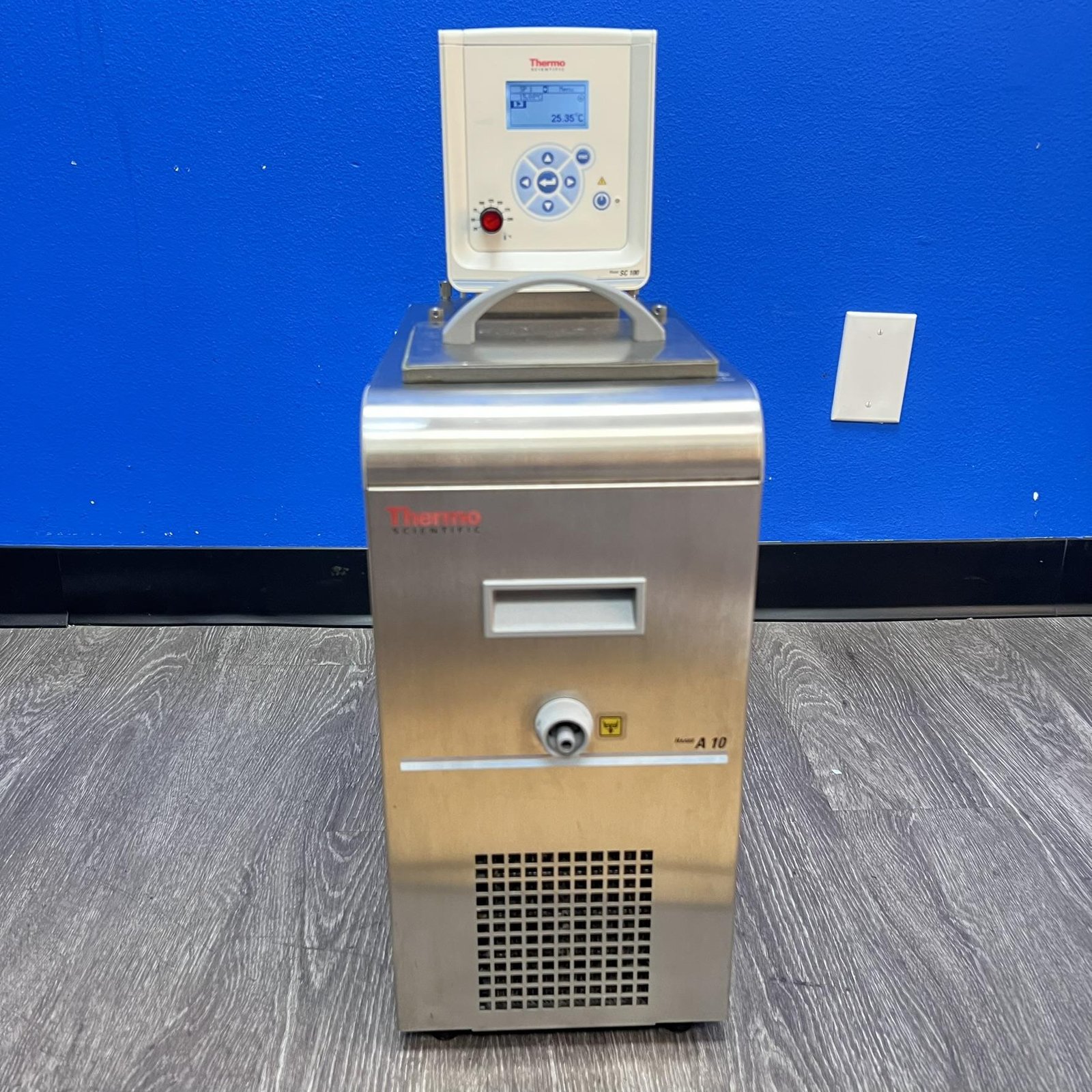

Thermo Scientific SC100-A10 Circulator Bath

The Thermo Scientific SC100-A10 Arctic Refrigeration Bath w SC100 Controller is a compact, high-precision refrigerated circulator engineered for laboratory temperature control. Specifically, it supports both internal reservoir immersion and closed-loop external circulation across analytical instrumentation, bioreactors, refractometers, and rotary evaporators. Combining an A10 stainless steel refrigerated bath with the digital SC100 immersion controller, this system delivers dependable cooling and heating performance for sensitive research workflows.

Key Specifications of the Thermo Scientific SC100-A10

• Working Temperature Range: -10°C to +100°C (14°F to 212°F).
• Bath Reservoir Capacity: 6 liters (A10 compact bath footprint).
• Temperature Stability: ±0.02°C for precise thermal repeatability.
• Pumping Capacity: Pressure pump delivery up to 17 L/min with a maximum pressure head of 300 mbar.
• Refrigeration Capacity: Up to 240 W at 20°C for rapid pull-down and stable heat load dissipation.
• Electrical Requirements: Standard 115V / 60 Hz or 230V / 50 Hz configuration.

Thermo Scientific SC100-A10 Controller Capabilities and User Interface

The integrated SC100 digital controller provides intuitive parameter monitoring and responsive control over experimental setups. Therefore, operators can maintain precise thermal profiles with minimal configuration:

• Digital Display: Bright LED readout displays setpoint and actual process temperature simultaneously.
• Dual-Speed Pump: Allows users to tailor flow rates between delicate internal bath incubation and demanding external jacket circulation.
• Thermal Safety Systems: Includes high-temperature limit cutoffs and low-liquid level float detection to prevent dry running or element overheating.
• Acoustic and Visual Alarms: Alerts laboratory personnel promptly if temperature deviations or safety faults occur.

Build Quality and Bath Architecture

Constructed for demanding laboratory environments, the Thermo Scientific SC100-A10 pairs durable materials with space-saving ergonomics:

• Stainless Steel Reservoir: Resists chemical corrosion, simplifies routine decontamination, and withstands continuous exposure to water-glycol mixtures.
• Front-Facing Drain Port: Enables quick, mess-free fluid emptying during fluid changeovers or storage.
• Composite Top Plate: Stays cool to the touch during high-temperature operation to enhance benchtop user safety.

Maintenance and Application Suitability

Regular maintenance remains straightforward. Specifically, the condenser air grille unlatches easily for routine dust removal. As a result, this protects refrigeration efficiency and preserves compressor longevity. Overall, the Thermo Scientific SC100-A10 Arctic Refrigeration Bath w SC100 Controller serves as a rugged, dependable solution for academic, clinical, and industrial laboratories requiring uniform, repeatable thermal regulation across moderate sub-ambient and elevated temperature ranges.
