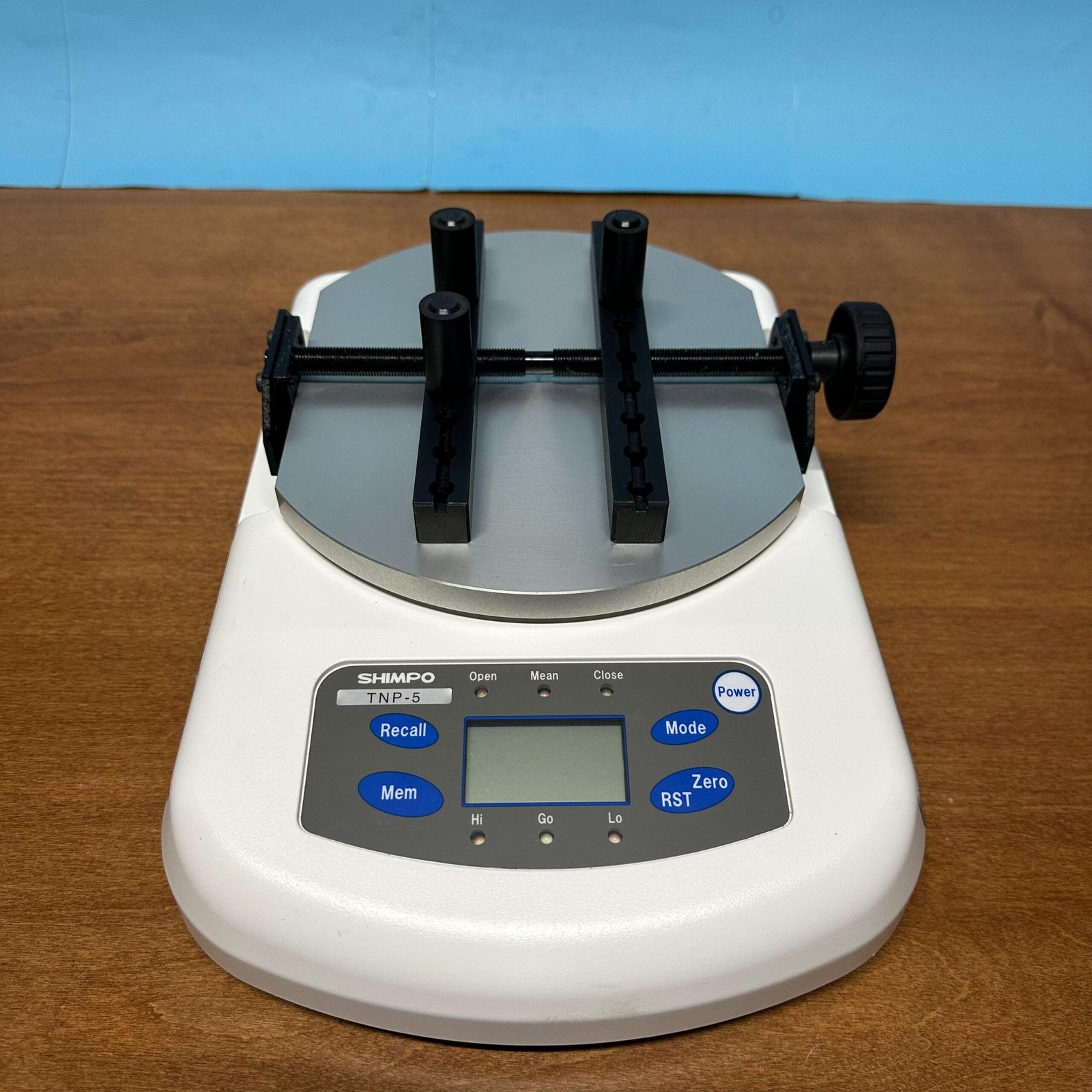

Shimpo TNP-5 Torque Tester 0-44.25 lb-in

The Shimpo TNP-5 Torque Tester is a precision digital instrument engineered for determining bottle cap opening and closing torque. Designed for packaging quality control and laboratory testing, it handles closures up to 44.25 lb-in (5 N-m / 500 N-cm) with dependable accuracy and high repeatability.

Shimpo TNP-5 Torque Tester Measurement Capabilities

The unit provides quantitative data to ensure closure integrity while maintaining user accessibility. Key technical capabilities include:

• High-Accuracy Torque Sensing: Delivers ±0.5% full-scale accuracy across a 0 to 44.25 lb-in range. Consequently, operators can detect slight variations in capping machine tolerances.
• Flexible Test Modes: Operates in Peak, First Peak, or Track modes. Therefore, technicians can capture breakaway torque, strip torque, and continuous operational resistance during testing.
• Wide Unit Selection: Supports four selectable engineering units, including lb-in, oz-in, N-m, and N-cm. As a result, facilities can easily match standard internal quality protocols.
• Adjustable Sample Fixturing: Features movable rubber-coated chuck pins that grip various container sizes and shapes. Furthermore, the quick-tightening table secures containers up to 7.5 inches in diameter without damaging sidewalls.

Shimpo TNP-5 Torque Tester Hardware and Interface

Engineered for both laboratory benches and production floor audits, the unit emphasizes straightforward operation and durability:

• Digital Display: A clear digital screen displays real-time torque values, battery life status, and test mode indicators.
• Internal Memory Storage: Stores up to 1,000 data points internally for batch quality inspections. Thus, operators can complete multi-sample runs without manually writing down each result.
• Rechargeable Battery Operation: An internal NiMH battery pack enables portable operation across different packaging lines, eliminating power cord constraints.
• Rugged Housing: The heavy-gauge aluminum casing protects internal electronics from accidental spills and mechanical impacts in industrial settings.

Packaging Applications and Quality Uses

The system accommodates diverse packaging validation workflows. Specifically, it supports pharmaceutical child-resistant caps, beverage screw closures, cosmetics pumps, and chemical container seals. In addition, USB connectivity allows direct data transfer to PC software for statistical process control (SPC) charting.

Ultimately, the Shimpo TNP-5 Torque Tester serves packaging engineers, quality assurance managers, and testing laboratories requiring repeatable, high-precision torque measurement.
