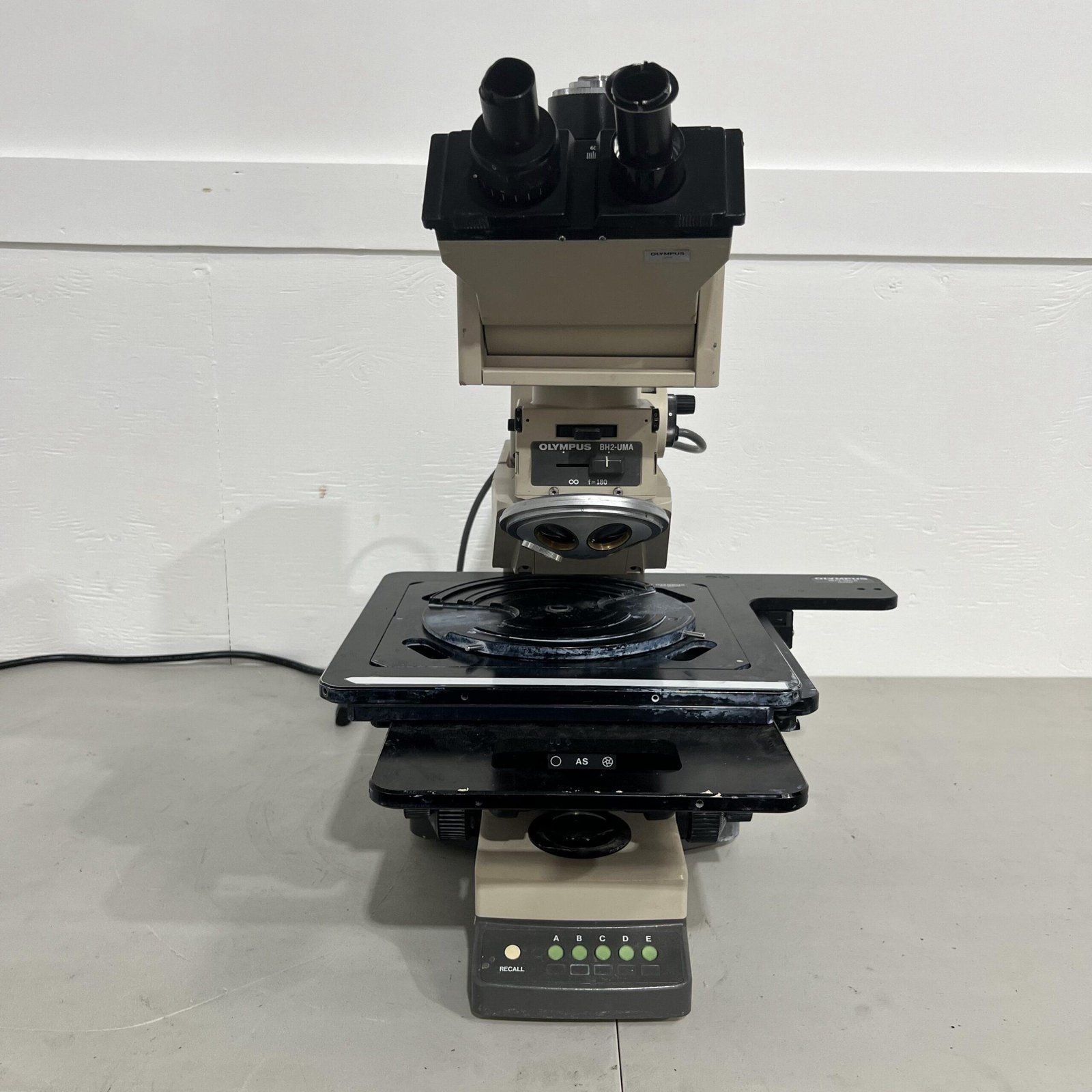

Olympus BH3-MJLT2 Industrial Inspection Microscope

The Olympus BH3-MJLT2 is a dedicated industrial metallurgical microscope designed for semiconductor wafer inspection, printed circuit board (PCB) analysis, and advanced materials quality control. Built upon the proven Olympus BH3 modular frame, this system combines high-resolution reflected-light optics with an expanded stage mechanism tailored for large-format electronic substrates.

Olympus BH3-MJLT2 Optical and Illumination Capabilities

The microscope delivers crisp, high-contrast imaging across reflective and opaque materials. Key optical features include:

• Epi-Illumination System: A dedicated reflected-light illuminator provides brightfield and darkfield observation modes. Consequently, technicians can clearly detect surface scratches, micro-cracks, and contamination on silicon surfaces.
• Long Working Distance (LWD) Objectives: The optical turret accommodates high-numerical-aperture Neo/BD metallurgical objectives. Furthermore, extended working distances protect both the objective front lens and delicate semiconductor samples from accidental collision during focus changes.
• Trinocular Viewing Tube: An integrated photo port allows straightforward camera mounting. Therefore, facilities can easily record inspection images, perform digital measurements, and generate quality audit reports.
• Ergonomic Viewing Angle: Operators benefit from a comfortable head angle during extended inspection shifts, reducing fatigue during repetitive wafer batch screening.

Olympus BH3-MJLT2 Stage and Mechanical Features

Engineered specifically for semiconductor and industrial cleanroom workflows, the MJLT2 frame incorporates specialized mechanical hardware:

• Large-Travel Inspection Stage: The unit features a broad mechanical stage capable of handling multi-inch silicon wafers, hybrid circuits, and precision metal tooling.
• Coaxial Coarse and Fine Focusing: Low-positioned focus knobs offer fine-increment adjustments. As a result, operators achieve critical focus at high magnifications without mechanical backlash.
• Stable Heavy-Duty Base: The cast frame minimizes external mechanical vibrations from the laboratory floor. Thus, imaging remains sharp and steady during high-power examinations.

Industrial Applications

The Olympus BH3-MJLT2 serves crucial roles across cleanrooms, failure analysis labs, and precision engineering departments. Specifically, it supports integrated circuit (IC) packaging verification, photolithography mask audits, metallurgical grain boundary examination, and solar cell quality assurance.

Ultimately, the Olympus BH3-MJLT2 provides manufacturers, semiconductor fabrication plants, and research laboratories with a rigid, high-fidelity platform for critical defect identification and quality verification.
