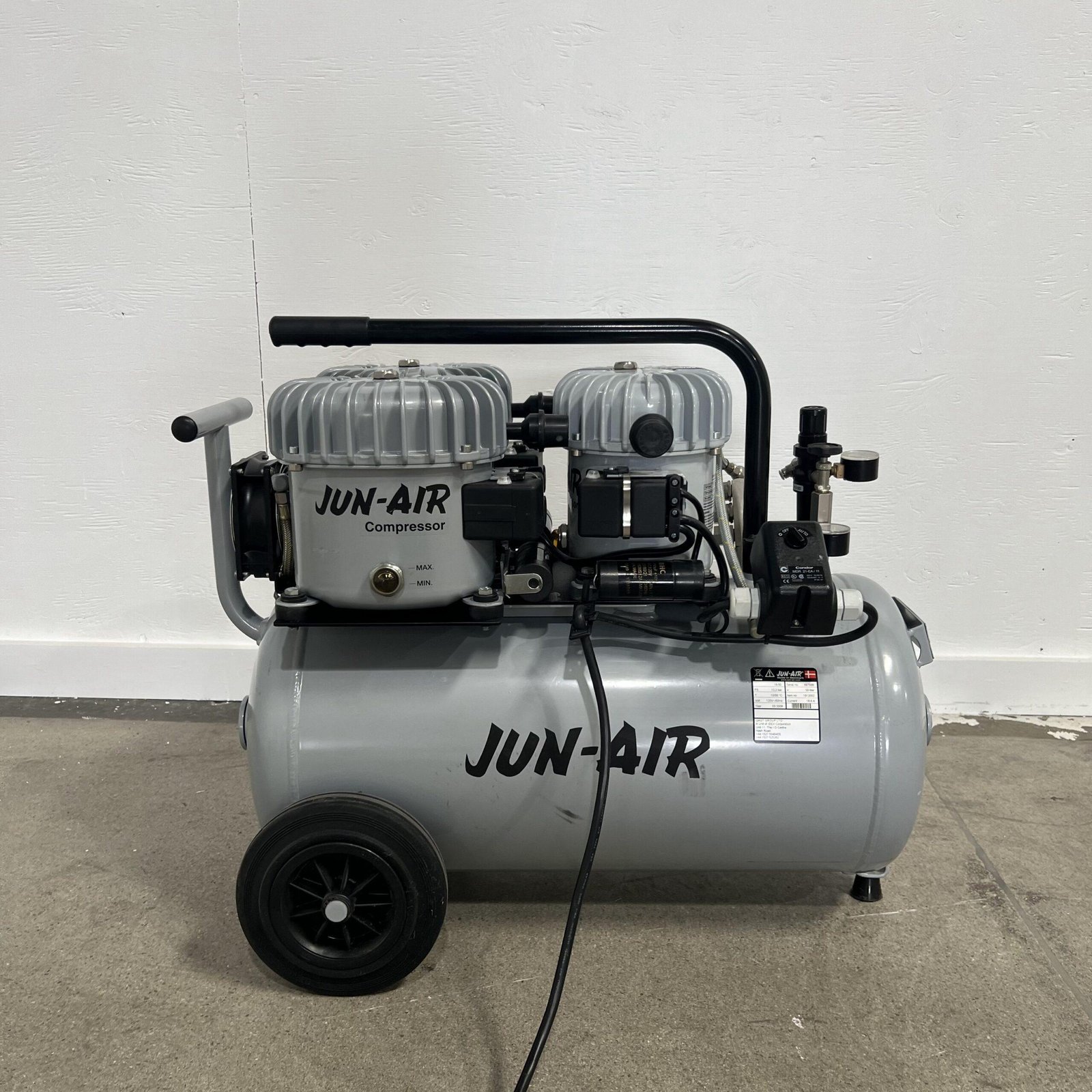

JUN-AIR Model 6 18-50 Silent Air Compressor (50L)
The JUN-AIR Model 6 18-50 Silent Dual Head Industrial Air Compressor (50L) delivers a continuous supply of clean pneumatic power without the disruptive noise of standard industrial units. By mounting two synchronized pump units onto an internally coated 50-liter receiver, this dual-head setup provides higher displacement and dependable pressure stability. Consequently, sensitive laboratory and cleanroom processes can operate continuously without line drops.
Key Specifications of the JUN-AIR Model 6
- Motor Configuration: Dual oil-lubricated pump heads working in tandem
- Receiver Volume: 50 Liters (approximately 13.2 Gallons)
- Operating Noise Level: Roughly 45–48 dB(A) measured at 1 meter
- Maximum Working Pressure: 8 bar (approx. 120 psi)
- Duty Cycle: 100% continuous duty rating under standard ambient temperatures
- Filtration & Control: Integrated pressure regulator, line gauge, and automatic condensate drain
Design and Functional Capabilities
- Acoustic Dampening: Because the sealed motor enclosures submerge the piston assemblies in a synthetic oil bath, they eliminate excessive mechanical vibration. As a result, operating sound levels match a quiet domestic refrigerator, removing the need for dedicated soundproof cabinets.
- Dual-Pump Displacement: In addition, running twin heads doubles airflow capacity compared to single-motor variants. Therefore, the system recovers pressure rapidly, which reliably maintains target line pressure even during sudden drawdowns.
- Corrosion-Inhibited Tank: Furthermore, an internal anti-corrosion coating protects the 50-liter receiver. This barrier stops rust buildup from compressed air condensation, thereby shielding downstream tools from particulate contamination.
- Thermal Management: Dual independent motor housings disperse heat across two separate sets of cooling fins. Consequently, thermal loads remain balanced during extended operational cycles, prolonging component service life.
Typical Industry Applications
- Analytical Laboratories: Specifically, it delivers clean, steady carrier and purge air for gas chromatography (GC), autosamplers, rheometers, and mass spectrometers.
- Medical & Dental Clinics: Moreover, it supplies vibration-free, silent compressed air directly into dental operatories, surgical tool drivers, and chairside systems without disturbing patients.
- Precision Manufacturing: Additionally, it powers automated pick-and-place robotics, optical sorting fixtures, and fluid-dispensing systems in cleanrooms and quiet assembly areas.
- Calibration & Testing: Consequently, it delivers pulse-free line pressure for sensor verification, flow meter calibration, and quality-control benches.
By pairing whisper-quiet operation with a dual-motor pneumatic output, the JUN-AIR Model 6 18-50 delivers the clean air displacement demanding facilities need without the disruptive noise of conventional machinery. Whether serving sensitive clinical setups, cleanrooms, or analytical benches, it provides a reliable, low-maintenance foundation for uninterrupted daily workflows.
