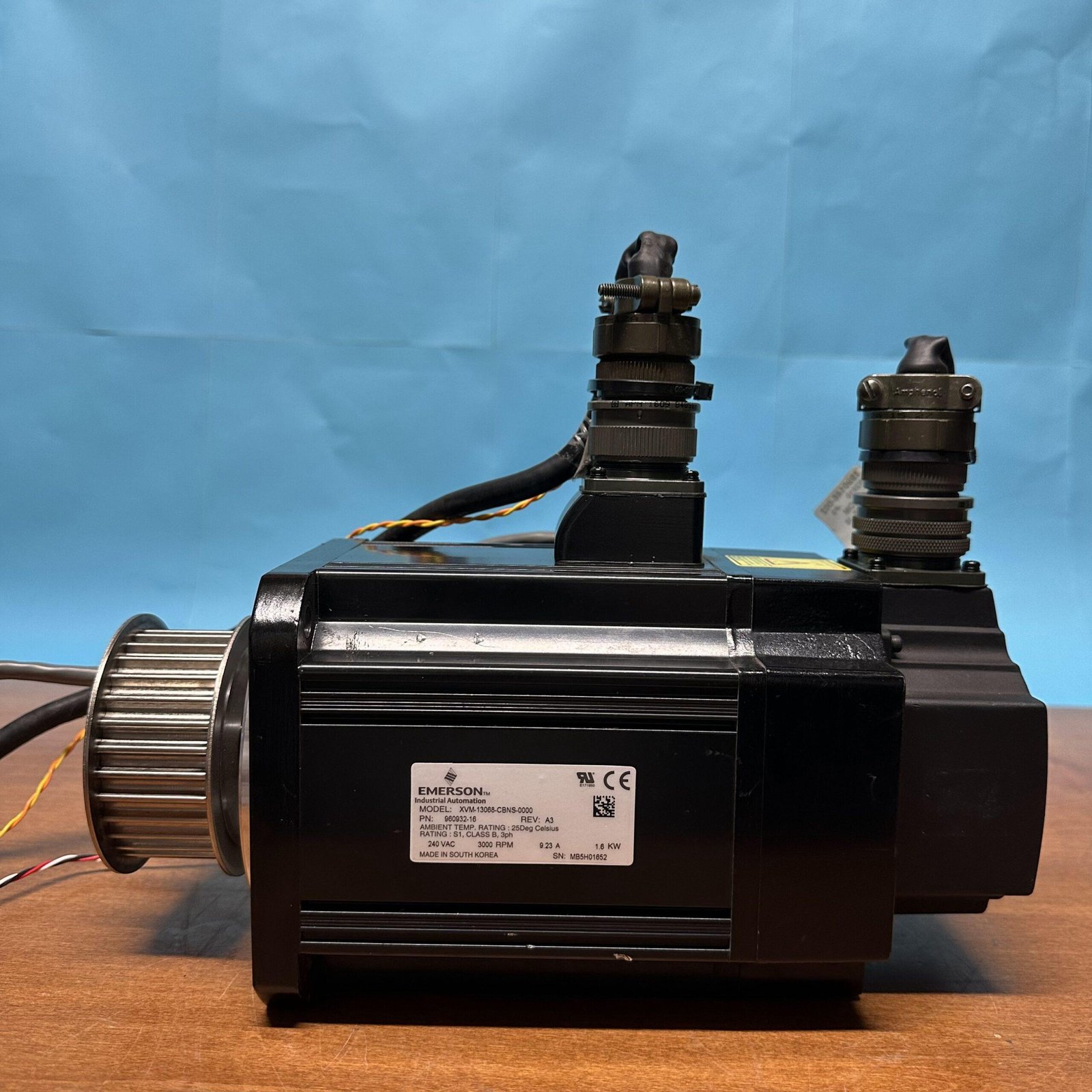

XVM-13068-CBNS-0000 Emerson Servo Motor

The Emerson XVM-13068-CBNS-0000 is a compact AC brushless servo motor from the Emerson Control Techniques XV Series, engineered for dynamic motion control applications requiring high torque-to-inertia ratios. Operating on a 240V three-phase electrical supply, this 1.6 kW servomotor delivers continuous power and rapid acceleration across demanding automation environments. Furthermore, its rugged construction ensures consistent performance and low maintenance in continuous industrial operations.

Emerson XVM-13068-CBNS-0000 Operational Design and Dynamics

Specifically, modern automation systems demand servomotors that respond instantly to variable velocity commands without losing position accuracy. In contrast to standard induction motors, the XVM-13068-CBNS-0000 utilizes high-energy permanent magnets and low-inertia rotor geometry.

• Low Rotor Inertia: The specialized rotor design minimizes mechanical inertia during start-stop cycles. As a result, the motor achieves rapid acceleration profiles and shorter settling times.
• Brushless Synchronous Design: Electronic commutation replaces mechanical brushes. Consequently, the motor eliminates brush wear, reduces electrical interference, and significantly lowers routine maintenance requirements.
• Thermal Dissipation: The extruded aluminum motor frame dissipates heat effectively during heavy continuous loads. Therefore, it preserves winding insulation integrity and prevents thermal derating.

Emerson XVM-13068-CBNS-0000 Technical Specifications

• Model Number: XVM-13068-CBNS
• Motor Series: Emerson Control Techniques XV Series
• Output Power: 1.6 kW (continuous rating)
• Input Voltage: 240V AC, 3-Phase
• Rated Base Speed: 3000 RPM
• Motor Frame Size: 130 mm metric flange
• Enclosure Protection: IP65-rated housing resistant to dust and low-pressure water jets
• Commutation / Feedback: High-resolution optical encoder feedback for closed-loop motion regulation

System Integration and Drive Compatibility

The XVM-13068-CBNS-0000 integrates seamlessly into industrial motion architectures:

• Drive Interfacing: The motor pairs directly with Emerson Control Techniques Digitax ST, Unidrive SP, and Unidrive M series digital servo drives. Thus, operators achieve quick plug-and-play parameter configuration.
• Robust Industrial Connectors: Heavy-duty military-style quick-disconnect connectors provide secure power and feedback connections. In addition, these sealed plugs protect signal channels from vibration and electromagnetic interference.
• Compact Machine Mounting: Standard DIN/IEC flange dimensions and keyed shaft geometry simplify mechanical coupling to gearboxes, ball screws, and timing belts.

Primary Application Scope

Consequently, the Emerson XVM-13068-CBNS-0000 AC servo motor is deployed across factory automation tasks that demand precise point-to-point positioning and speed regulation:

• High-speed packaging, cartoning, and bottling equipment
• CNC feed axes, gantry loaders, and pick-and-place robotics
• Automated labeling, printing, and converting machinery
• Material handling systems requiring dynamic speed synchronization

Ultimately, the Emerson XV Series servo motor combines robust power delivery, high rotational velocity, and precise closed-loop feedback to optimize productivity across automated production lines.
