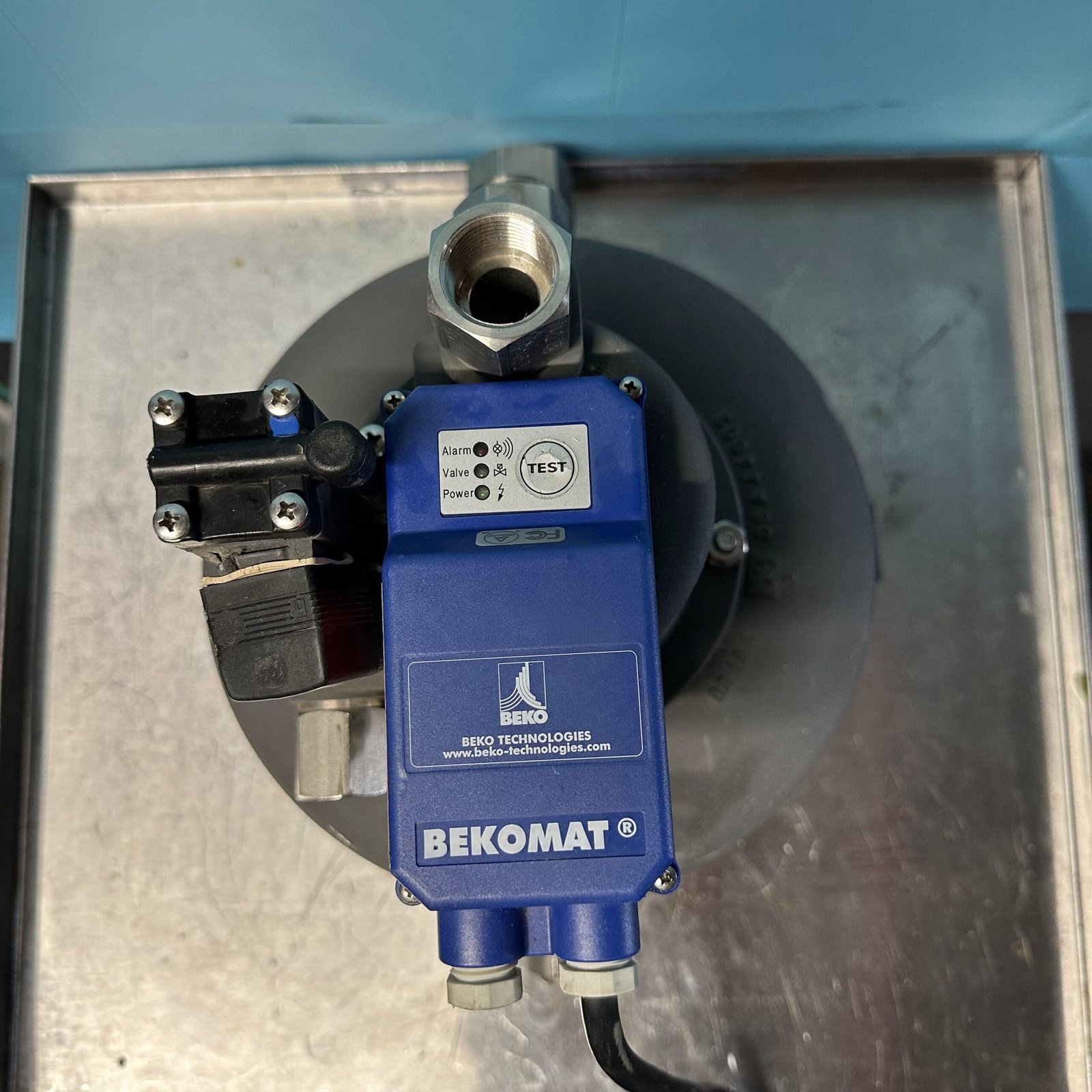

BEKOMAT BM16CO Electronic Condensate Drain

The BEKO Technologies BEKOMAT BM16CO Electronic Condensate Drain (Part Number: 2002983) is an electronically level-controlled drain. It removes condensate from industrial compressed air systems without venting compressed air. Furthermore, the unit handles standard and oil-contaminated condensate effectively. Consequently, the BM16CO series resolves efficiency and maintenance issues common to float-type or timed solenoid valves.

BEKOMAT BM16CO Operational Design and Mechanism

Conventional timer drains cycle periodically regardless of actual liquid accumulation. In contrast, the BEKOMAT 16CO relies on intelligent capacitive level-sensing technology.

• Capacitive Level Sensing: An internal sensor detects liquid accumulation inside the housing. As a result, it eliminates mechanical floats that often seize, foul, or stick from sludge.
• True Zero Air Loss: When condensate reaches the upper setpoint, electronic controls open a pilot-controlled diaphragm valve. In addition, the valve seals before air escapes, preventing costly pressure drops across your system.
• Corrosion-Resistant Enclosure: The BM16CO features hard-coated aluminum and robust internal components. Therefore, it easily withstands aggressive, acidic condensate from oil-injected and oil-free compressors.

BEKOMAT BM16CO Technical Specifications

• Operating Pressure Range: 0.8 to 16 bar (gauge) / 12 to 230 psig
• Discharge Capacity: Up to approximately 1,800 m³/h (1,060 cfm)
• Operating Temperature: +1°C to +60°C (+34°F to +140°F)
• Electrical Supply: Standard industrial AC configurations (115V or 230V AC, 50/60 Hz)
• Ingress Protection: IP65-rated housing for dust and moisture resistance
• Fluid Compatibility: Handles standard mineral oils, synthetic lubricants, and particulate sludge

Industrial Integration and Features

The unit includes integrated diagnostic functionality to ensure maximum system uptime:

• Self-Monitoring Logic: If an obstruction prevents discharge within an operational cycle, an alarm sequence triggers immediately.
• Potential-Free Alarm Contact: The unit connects directly to central PLCs or SCADA networks. Thus, operators receive rapid alerts before moisture carryover harms downstream tools.
• Test Function: An external manual button allows operators to verify valve actuation quickly. Moreover, this clears sediment build-up without requiring system disassembly.

Application Scope

The BEKOMAT BM16CO installs easily at key moisture collection points throughout compressed air networks:

• Downstream of compressor aftercoolers
• Base discharge ports on wet receiver tanks
• Direct drainage beneath cyclone separators, particulate pre-filters, and coalescing filters
• Drainage ports on refrigerated air dryers

Ultimately, by eliminating dry cycling and pressurized blow-off, the unit functions as a reliable drop-in replacement for mechanical drains across commercial and manufacturing facilities.
