Condition: Used in Clean, Excellent working condition.

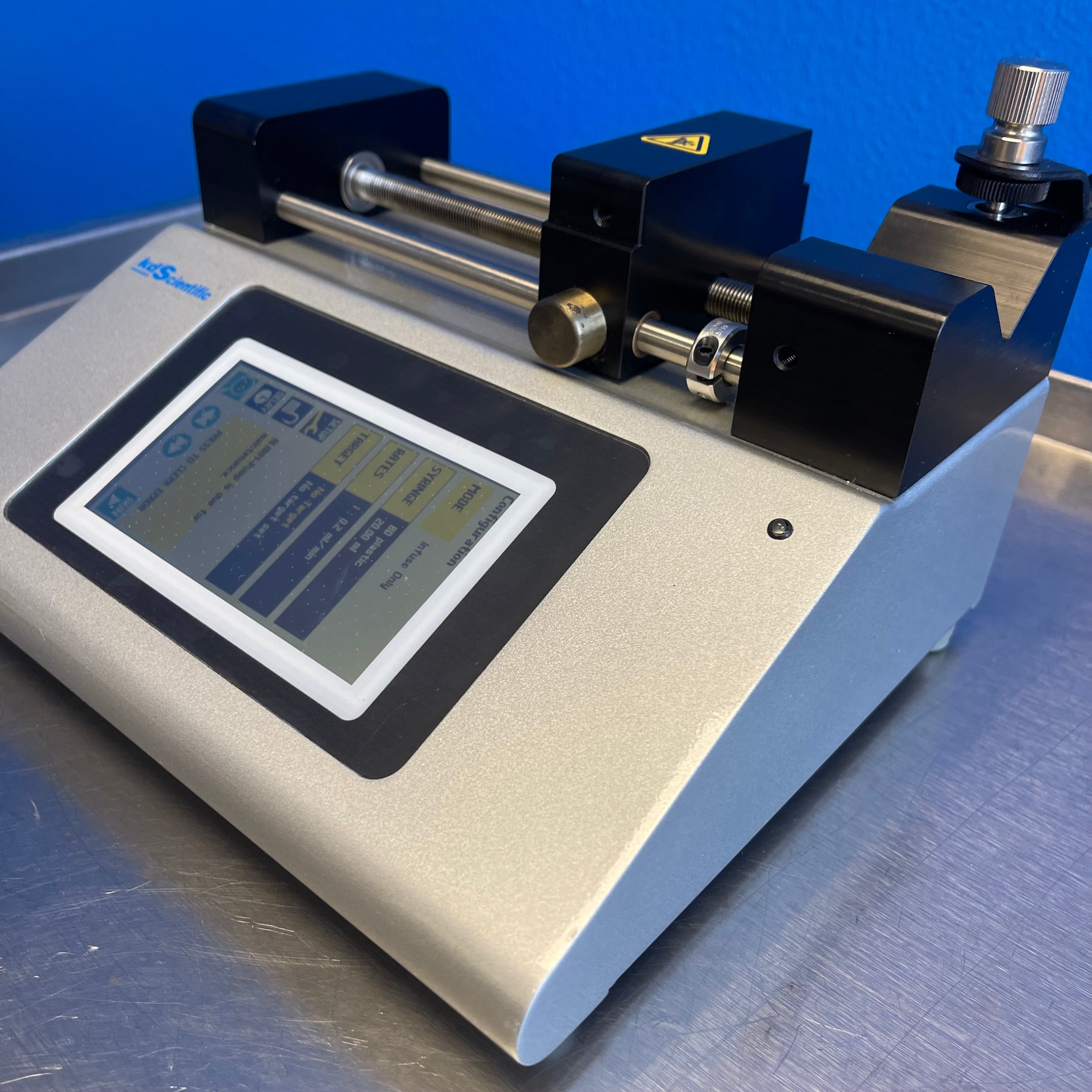

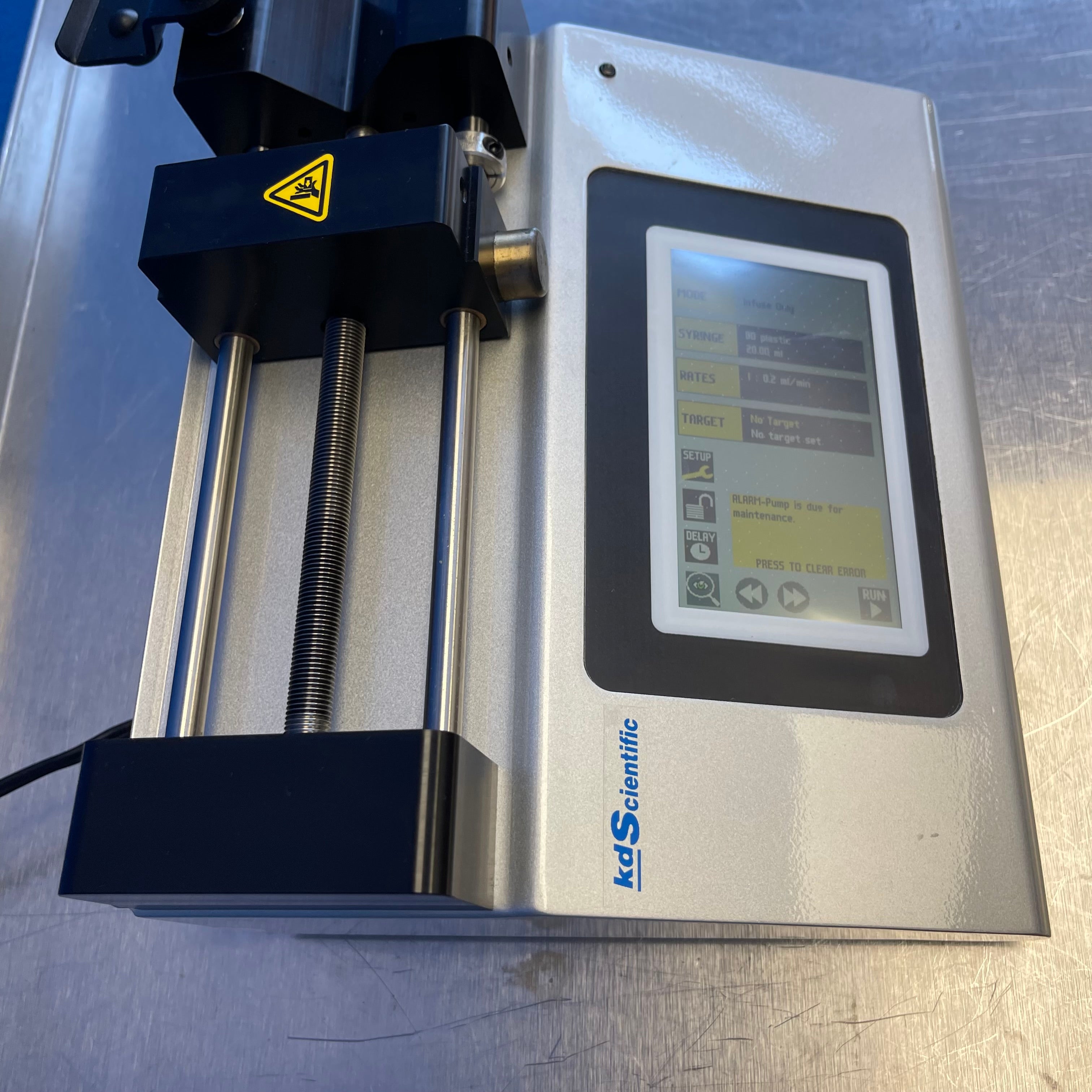

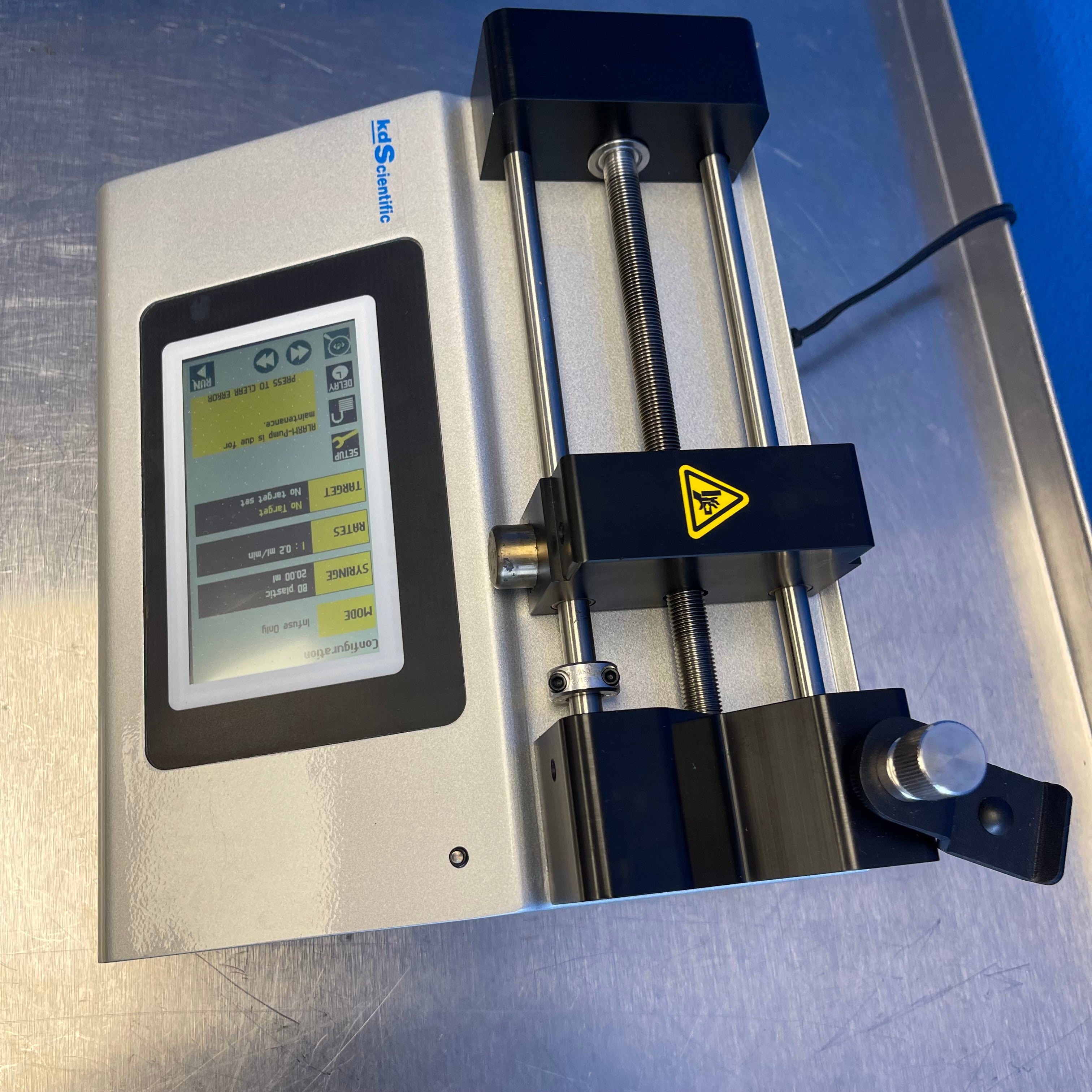

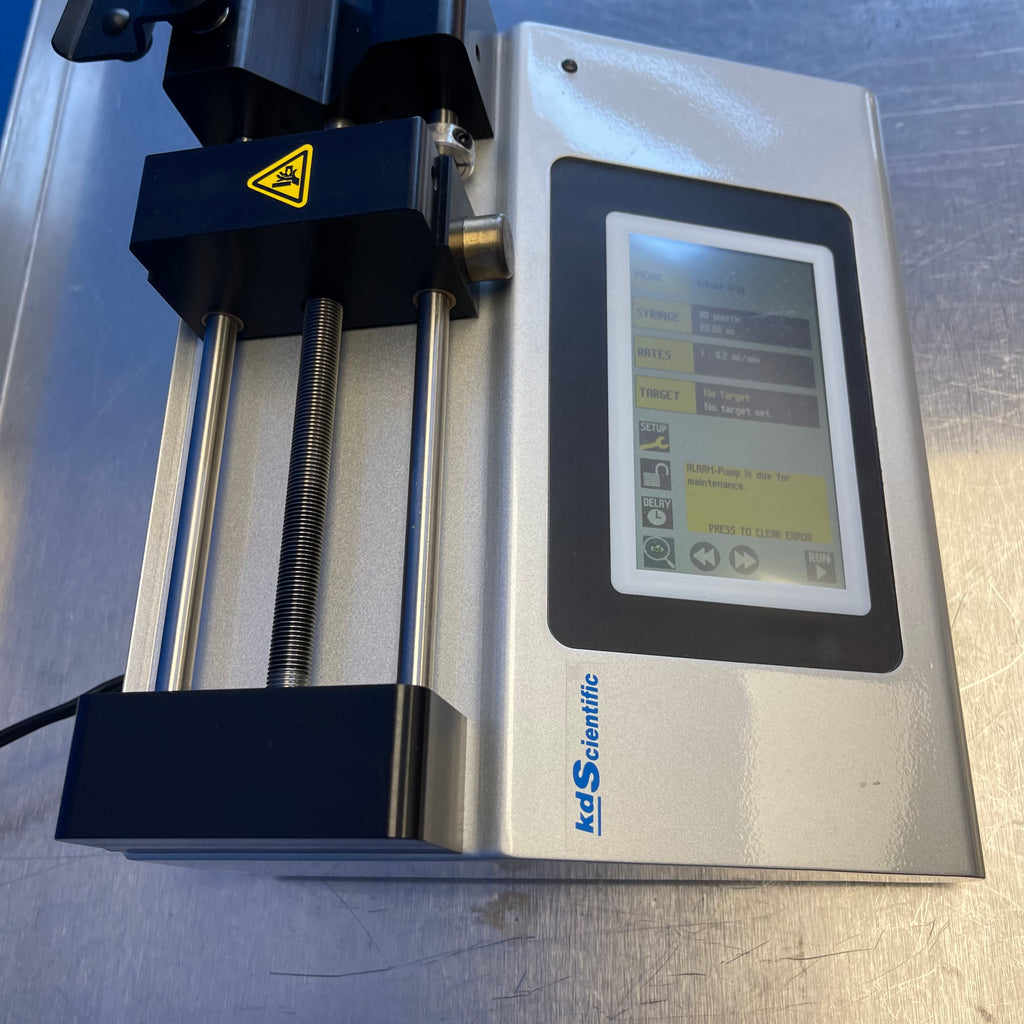

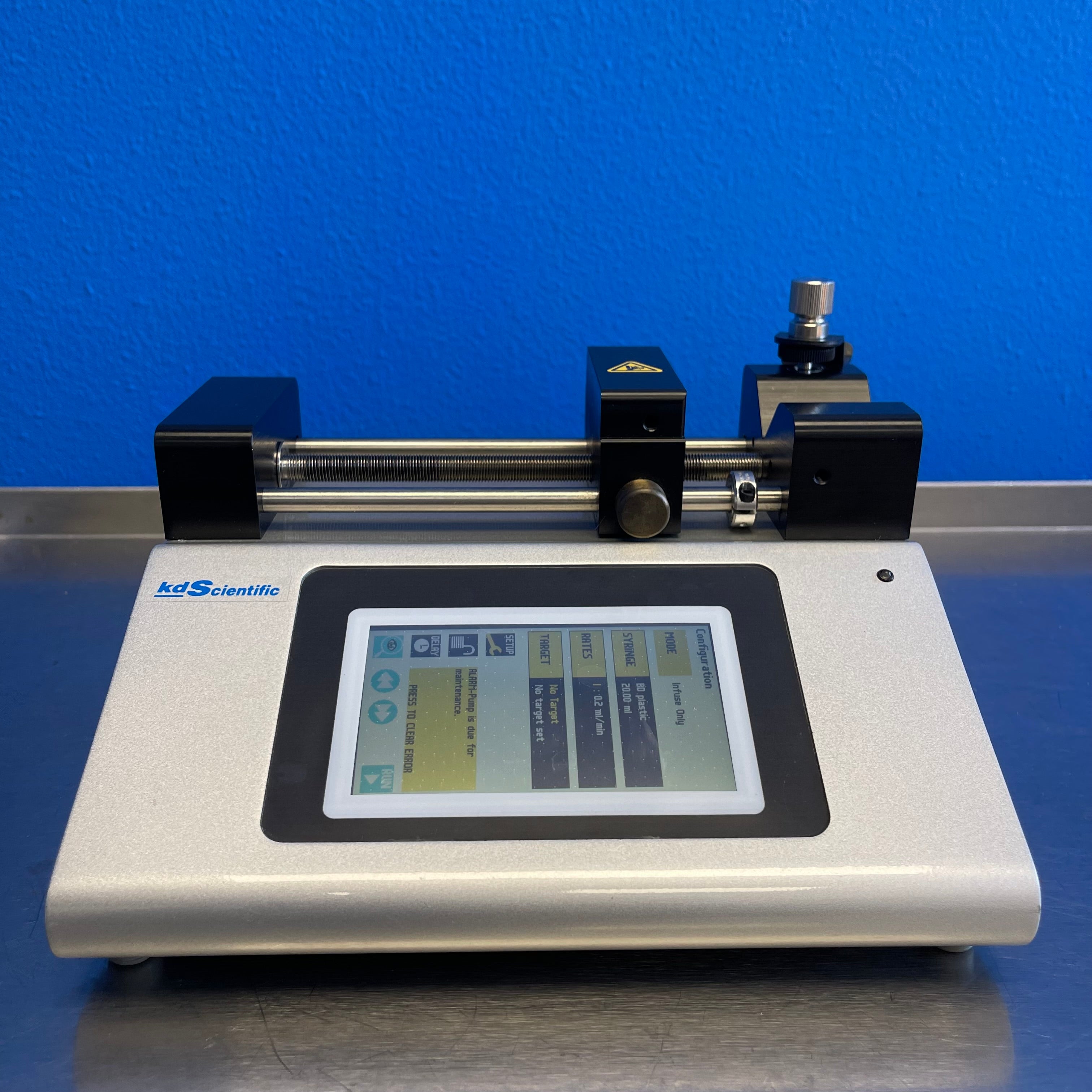

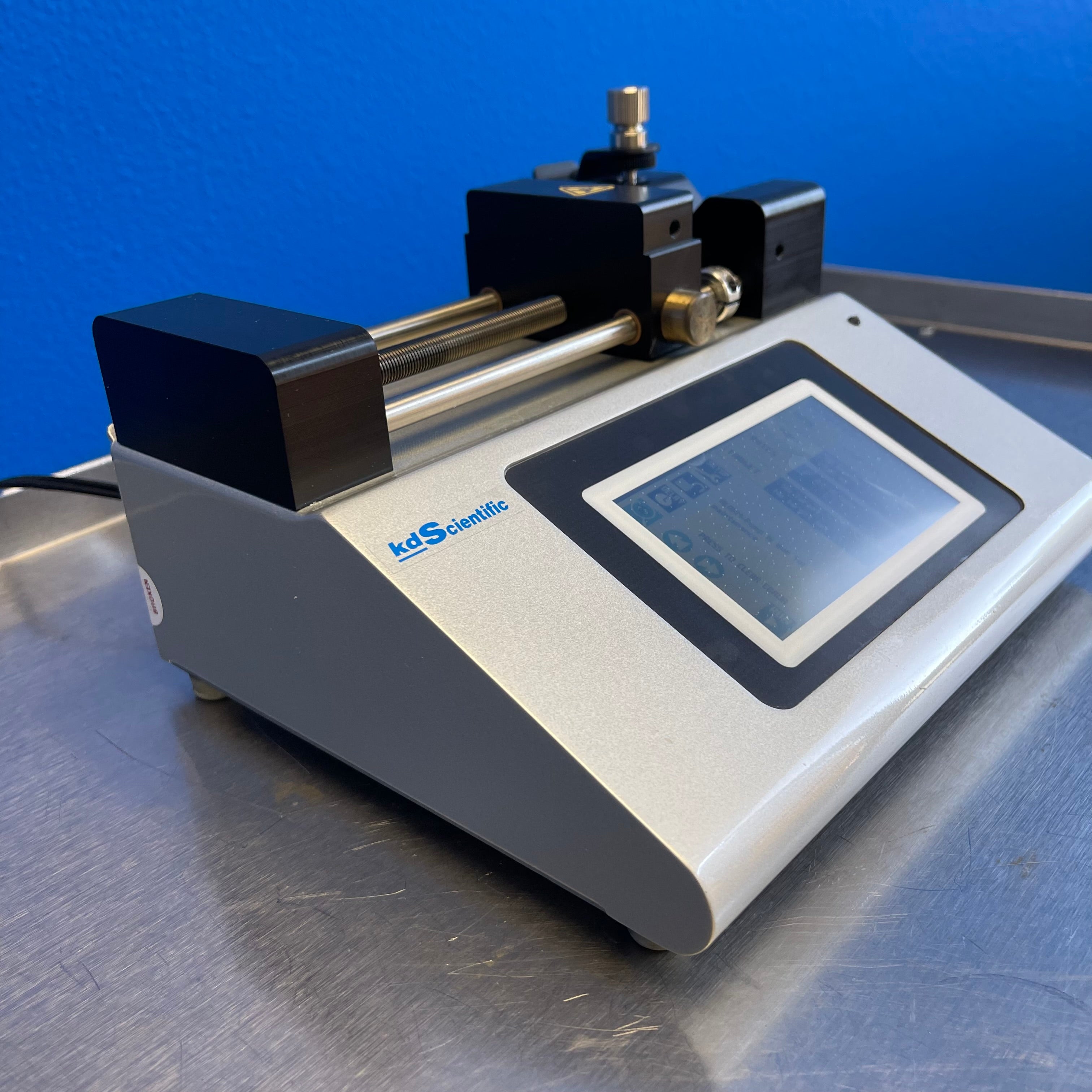

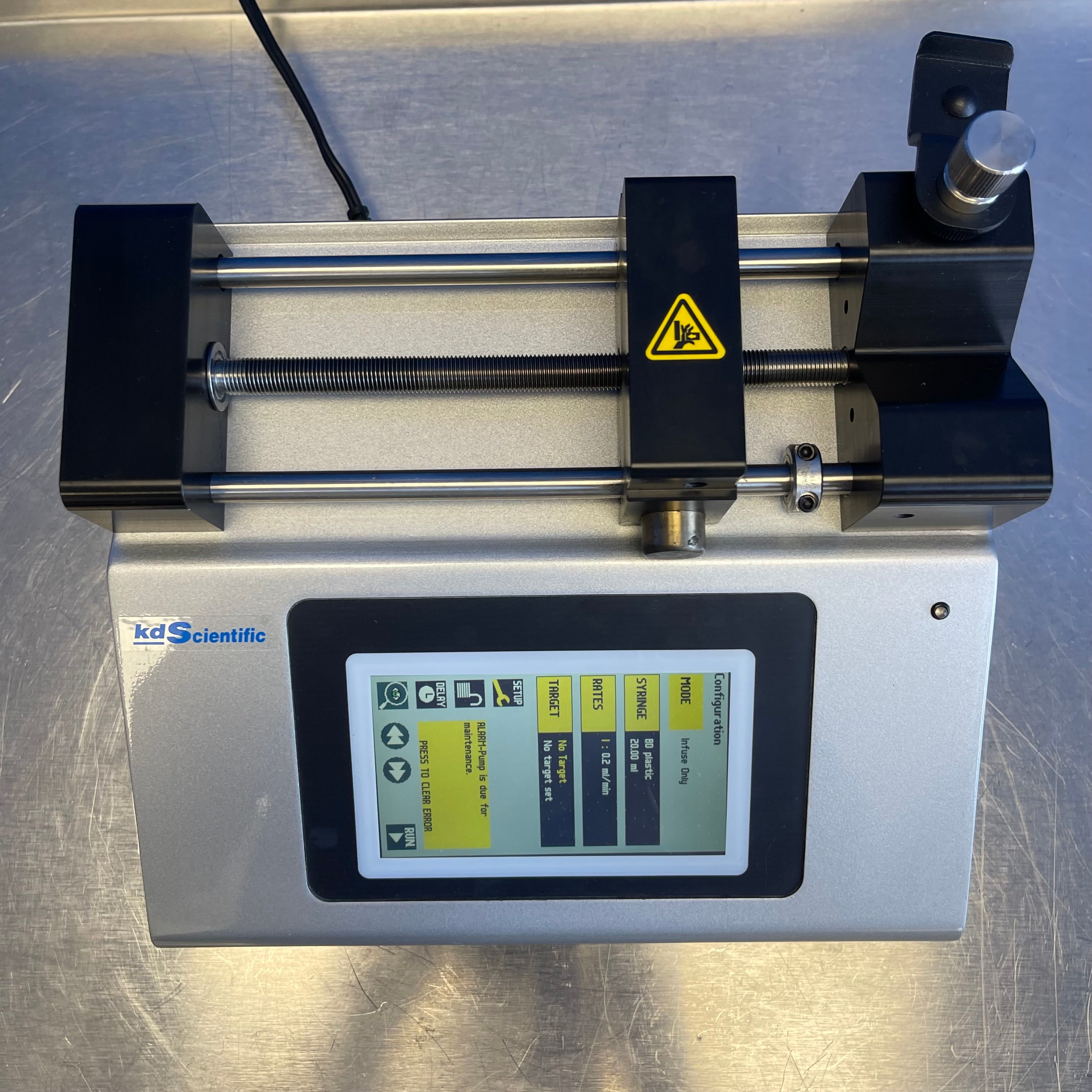

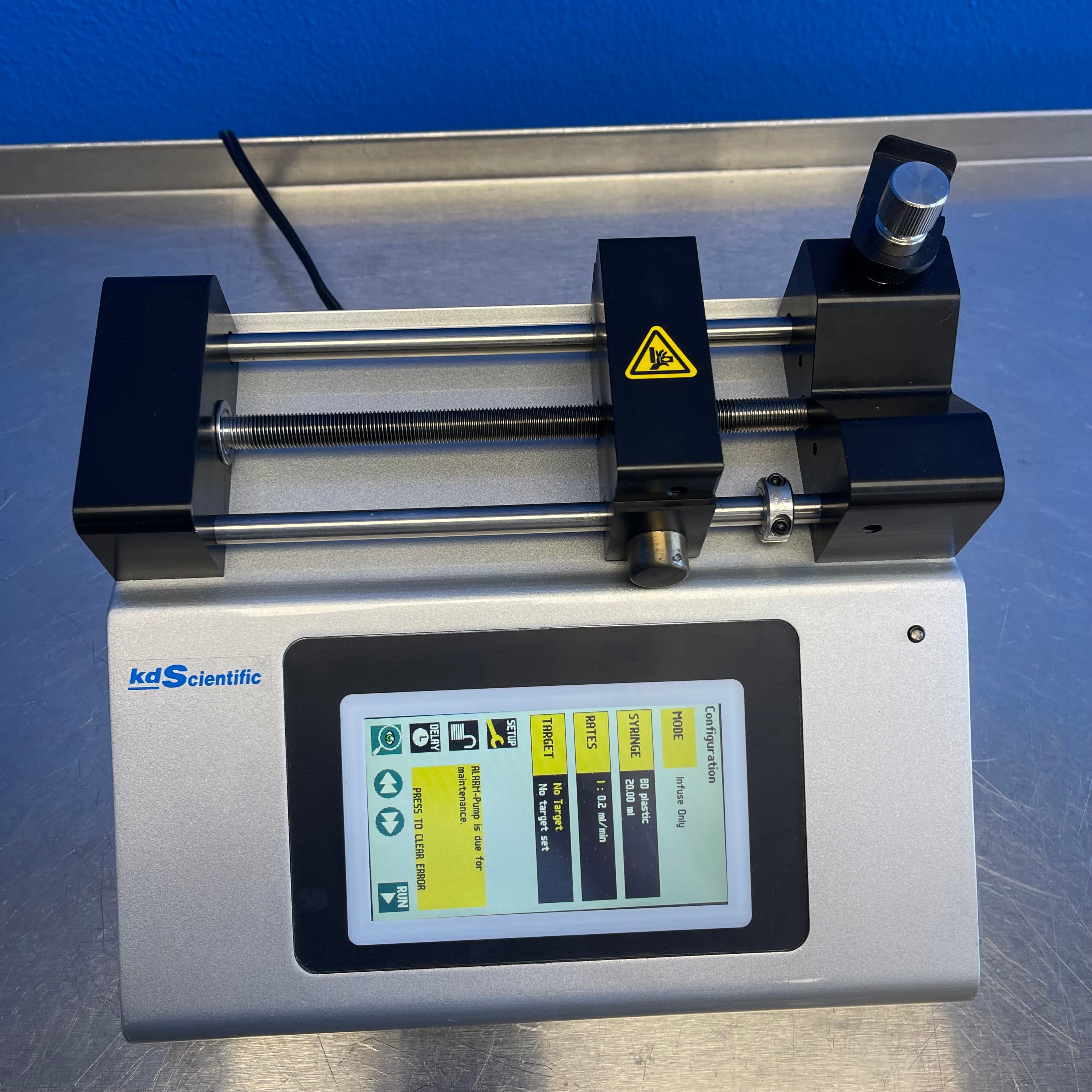

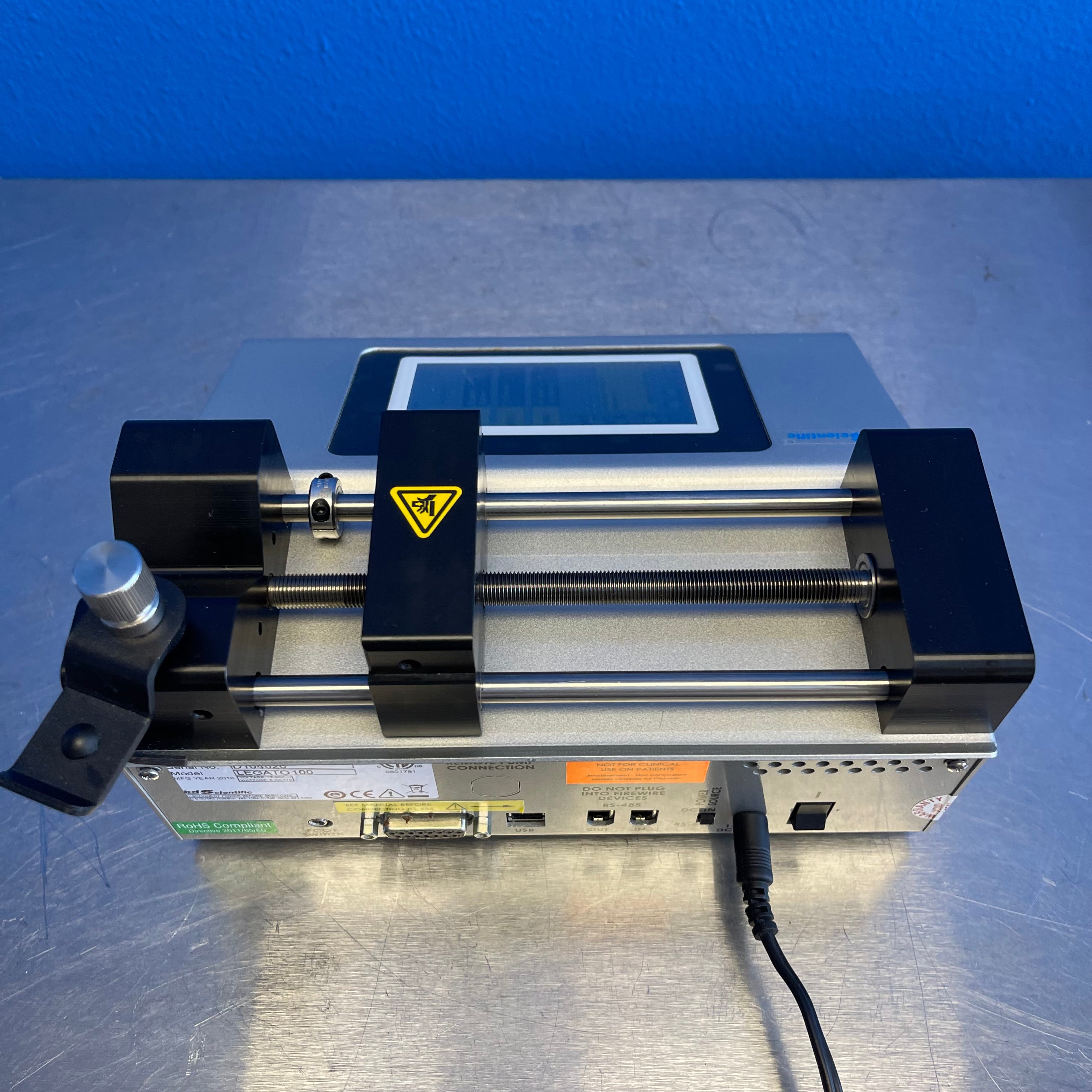

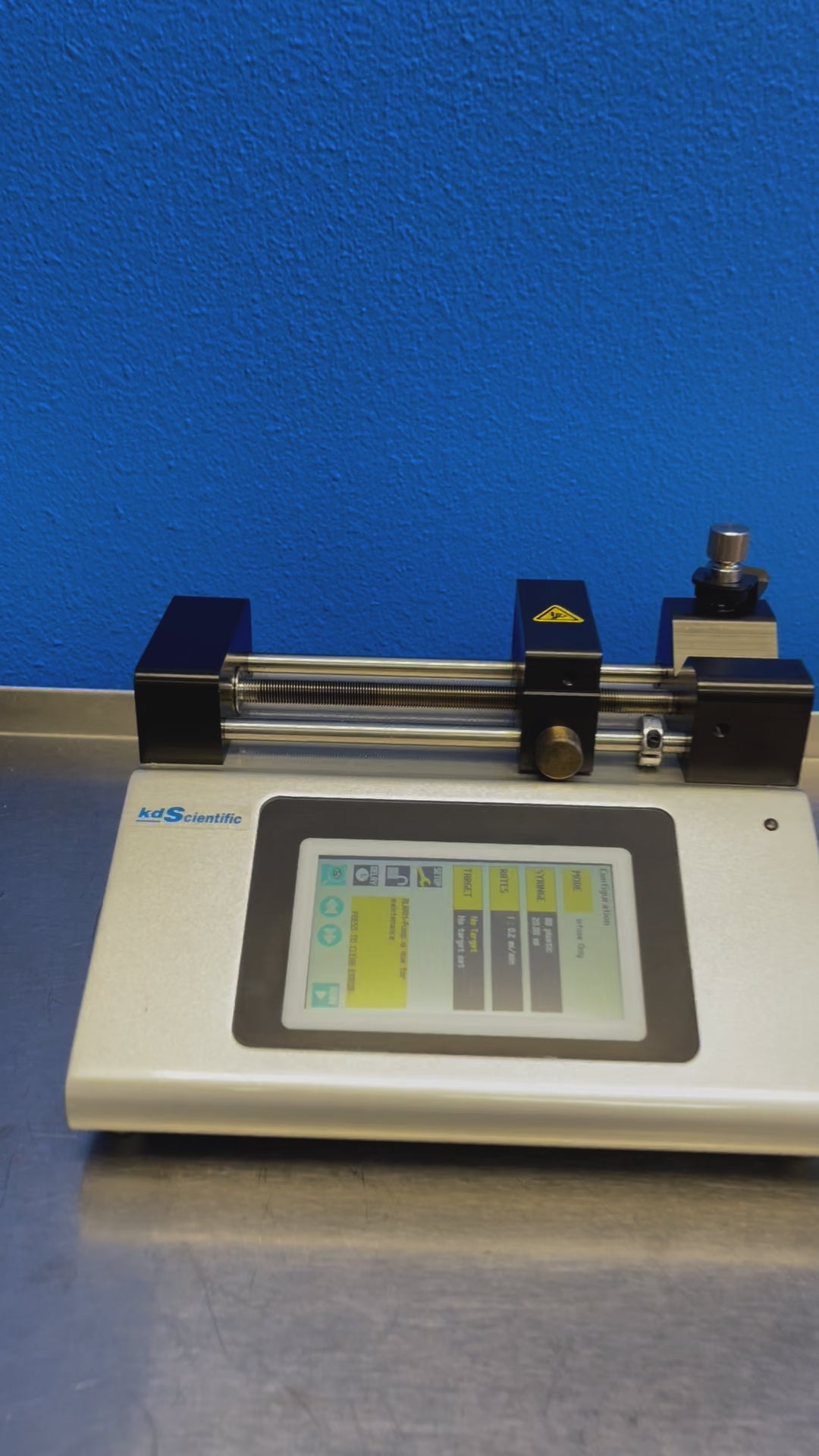

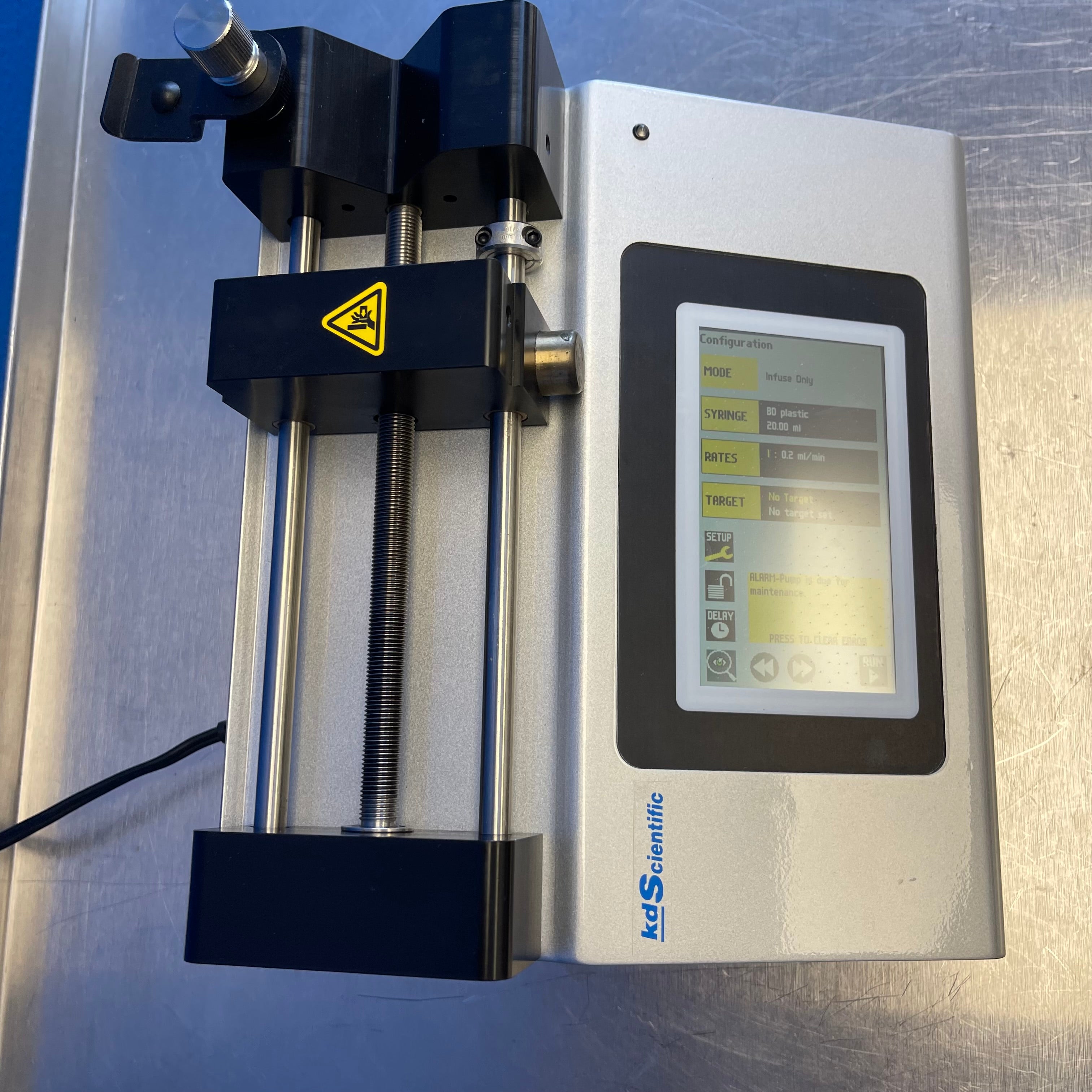

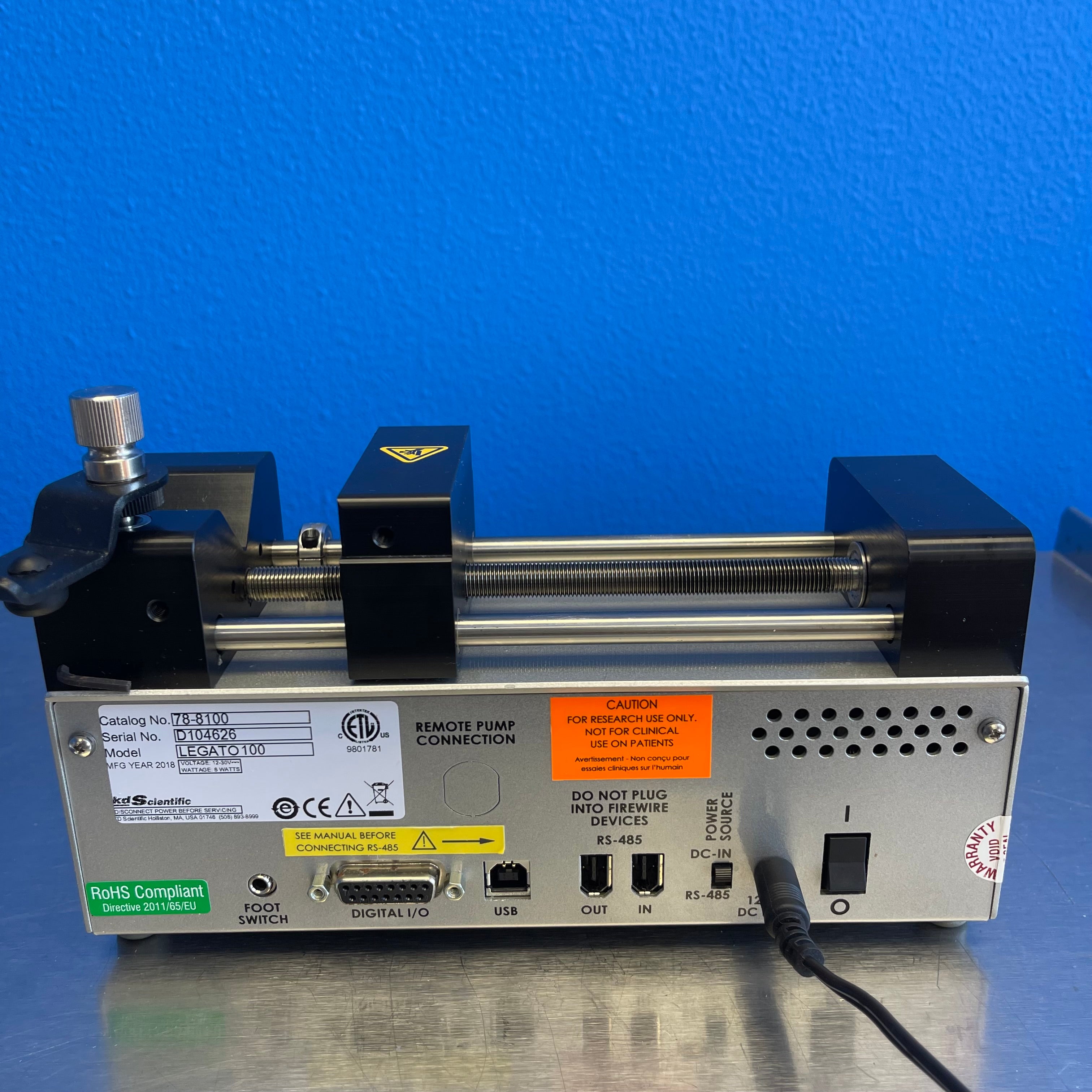

KD Scientific created the Legato 100 series with features that make it user-friendly, intuitive and easy to operate. This pump is perfect for labs with multiple users who need to use the same piece of equipment for many different experiments. A password feature makes saving and recalling data extremely simple and prevents accidental configuration change. With a full touch screen and dynamic user interface, each user can easily create and safely store configurations for different applications. Use Legato 100 series with 0.5 µl to 60 ml syringes.
Features
Holds one syringe from 0.5 µl to 60 ml
Stall detection

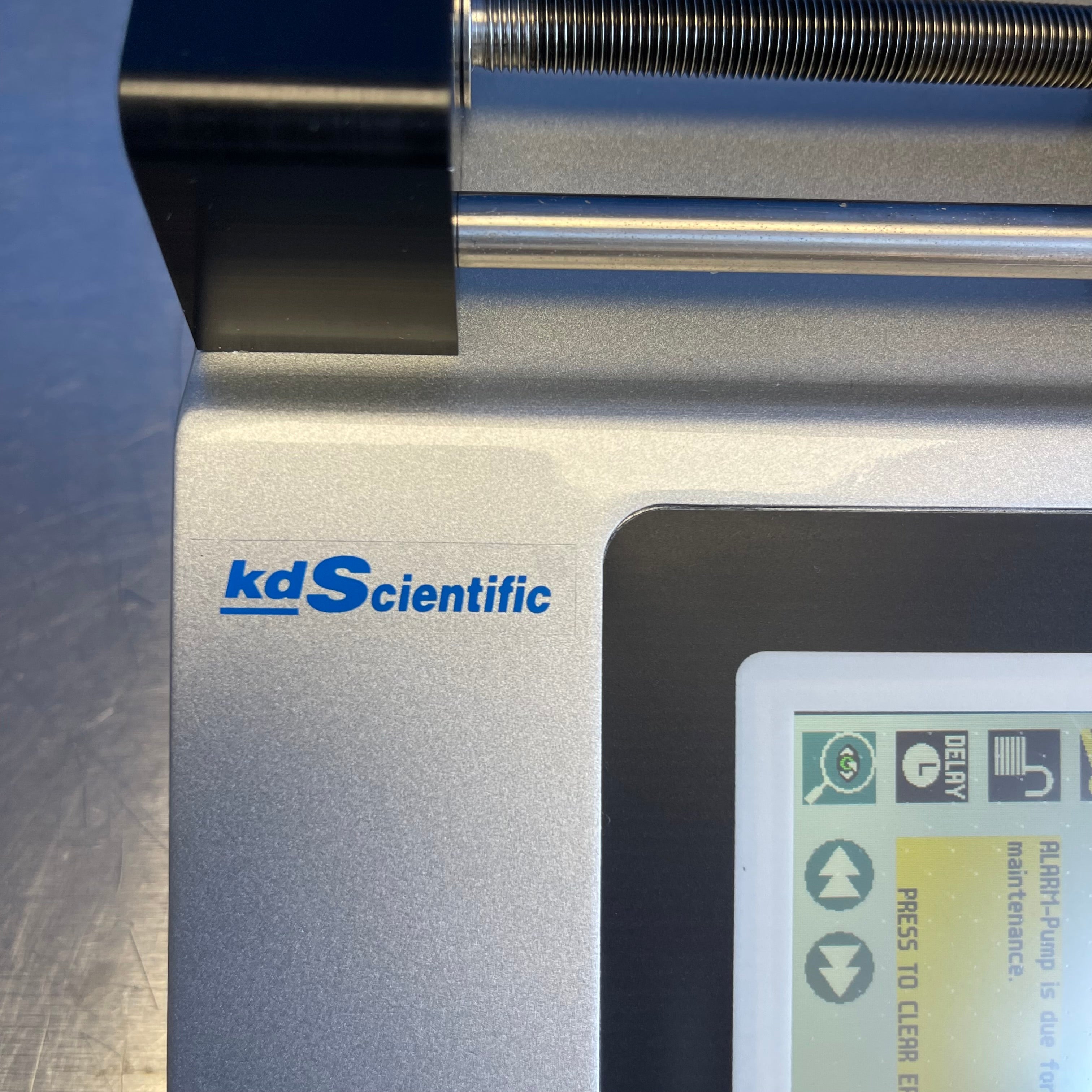

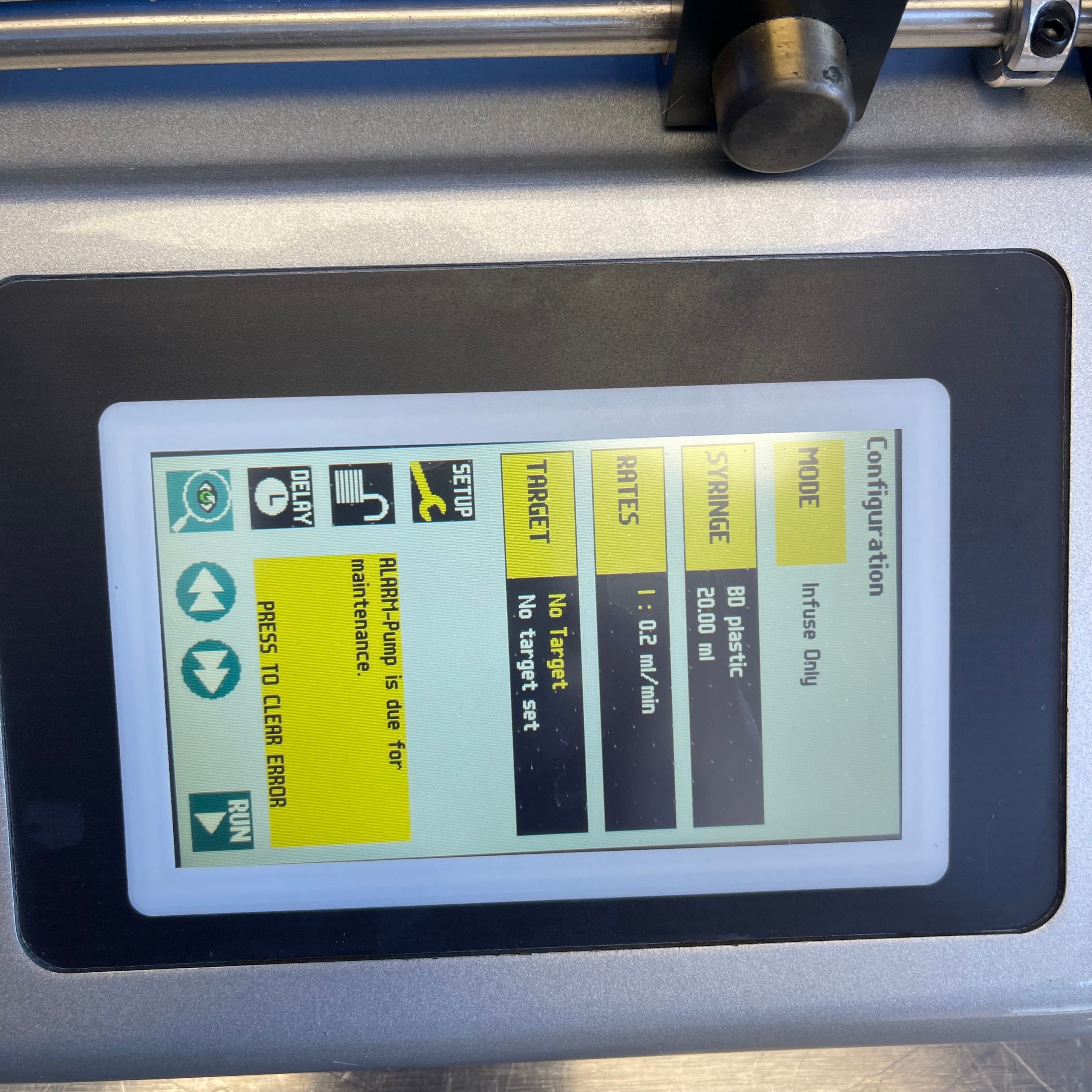

High resolution color touch screen
Unparalleled ease of use
Password protected touch display
Run LED light on front panel
Full metal chassis

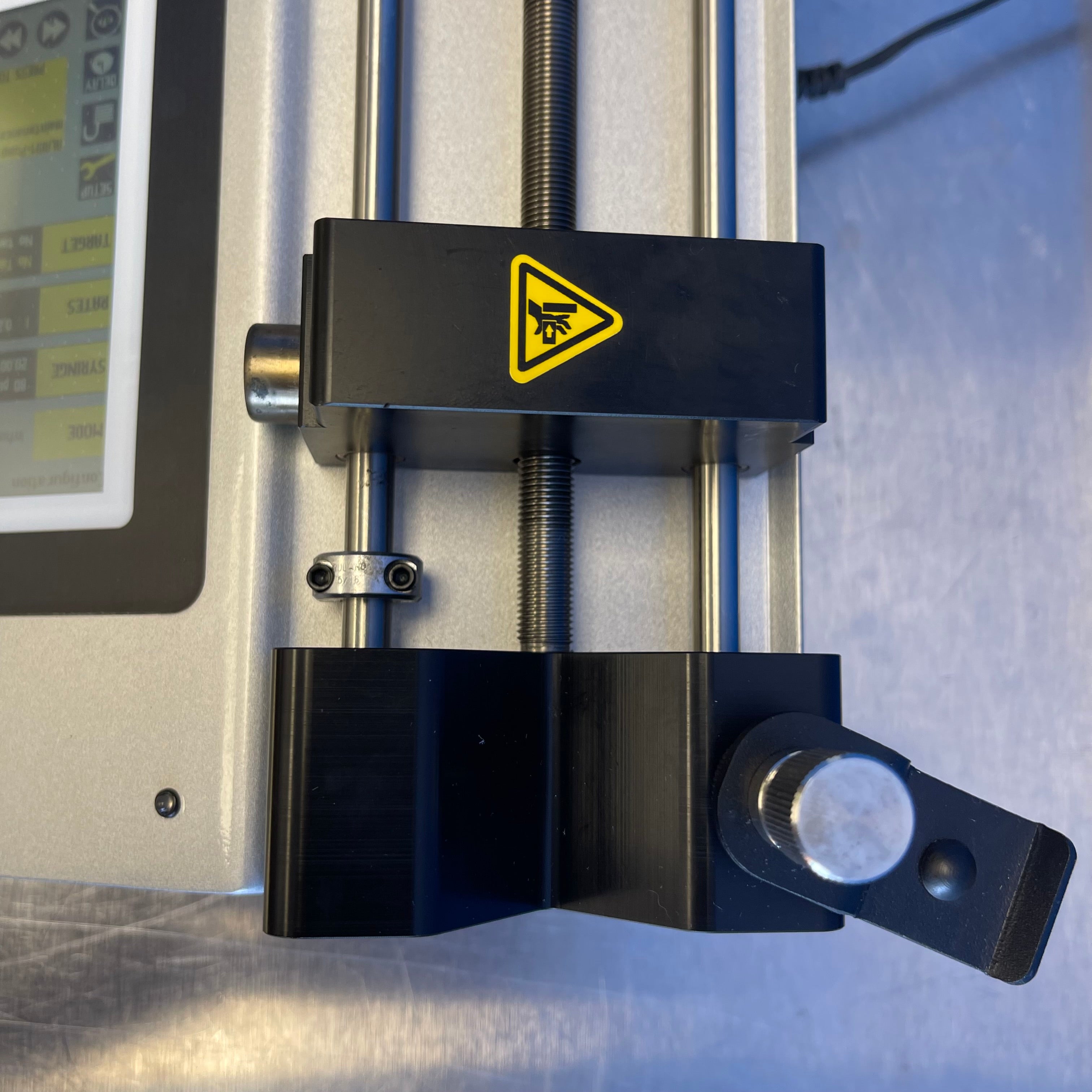

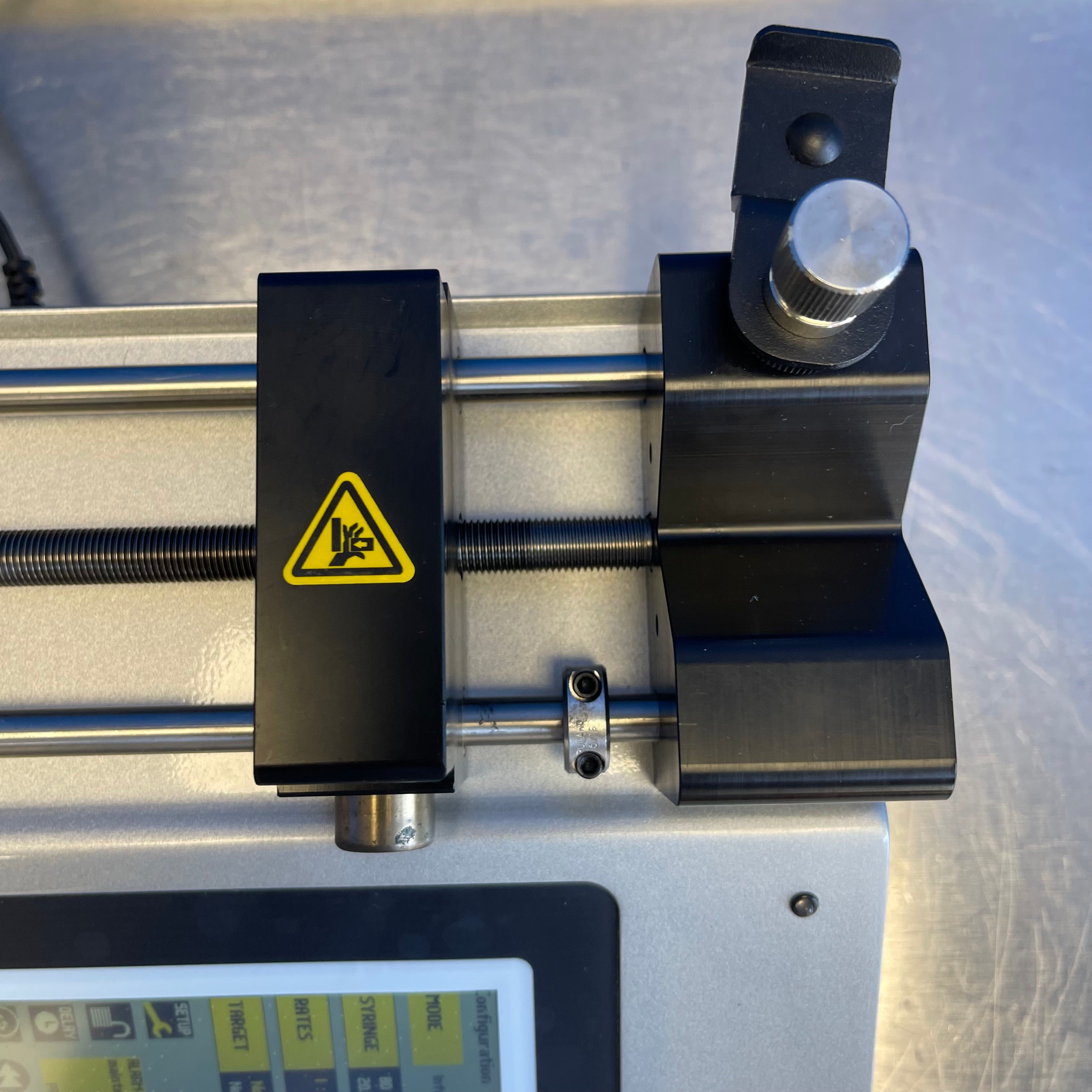

Built in syringe table
Up to 30 lb/13kg linear force
Advanced microstepping techniques
Built in RS485 interface
USB port
I/O & TTL interface
Continuous mode of operation
Spill dam
Specifications
Accuracy ±0.5%
Syringes (Min/Max) 0.5 µl to 60ml
Flow Rate Minimum (0.5 µl syringe): 1.28 pl/min
Maximum (10ml syringe): 25.99 ml/min
Maximum (60ml syringe): 88.28 ml/min
Display 4.3 WQVGA TFT Color Display with Touchpad
Non-Volatile Memory Stores all Settings

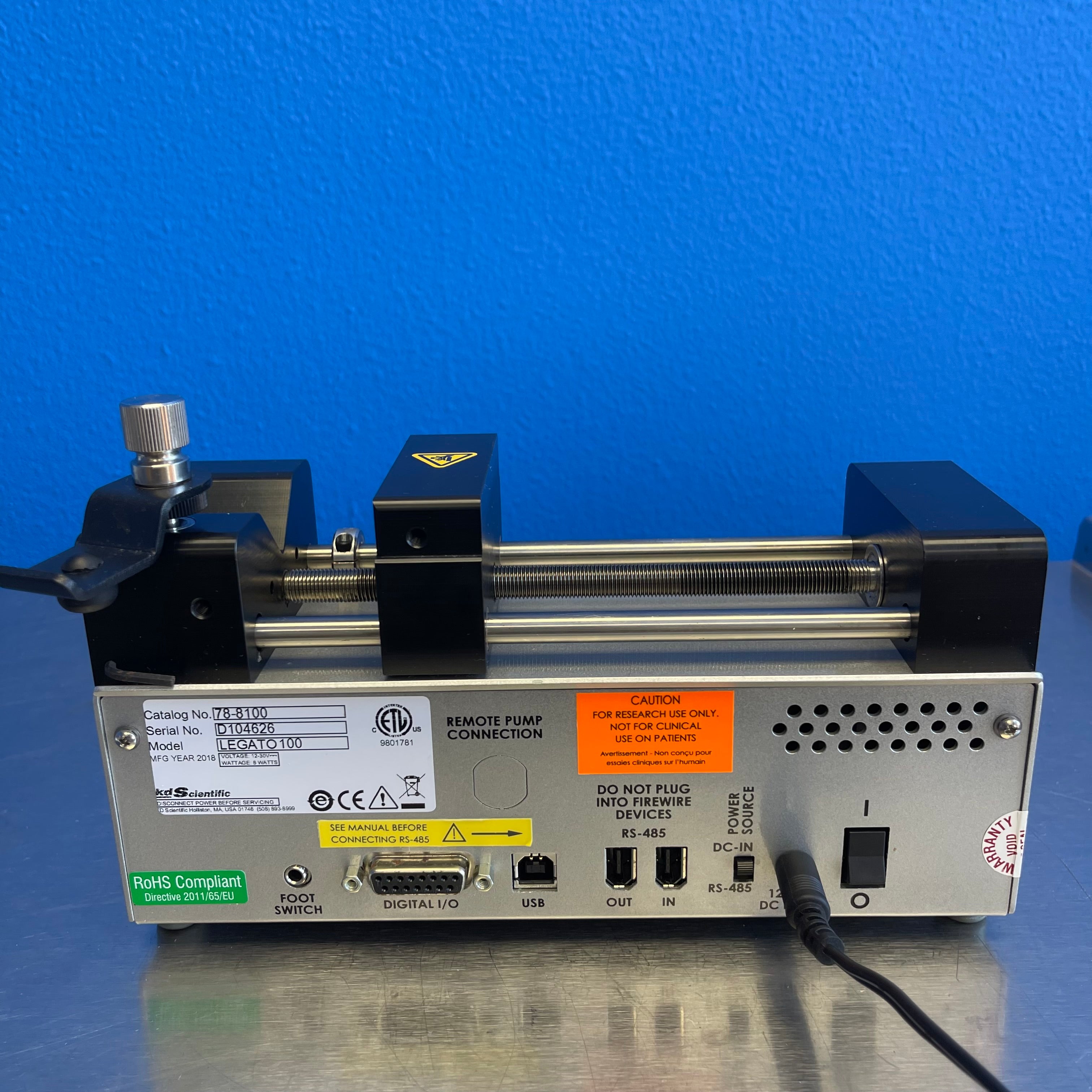

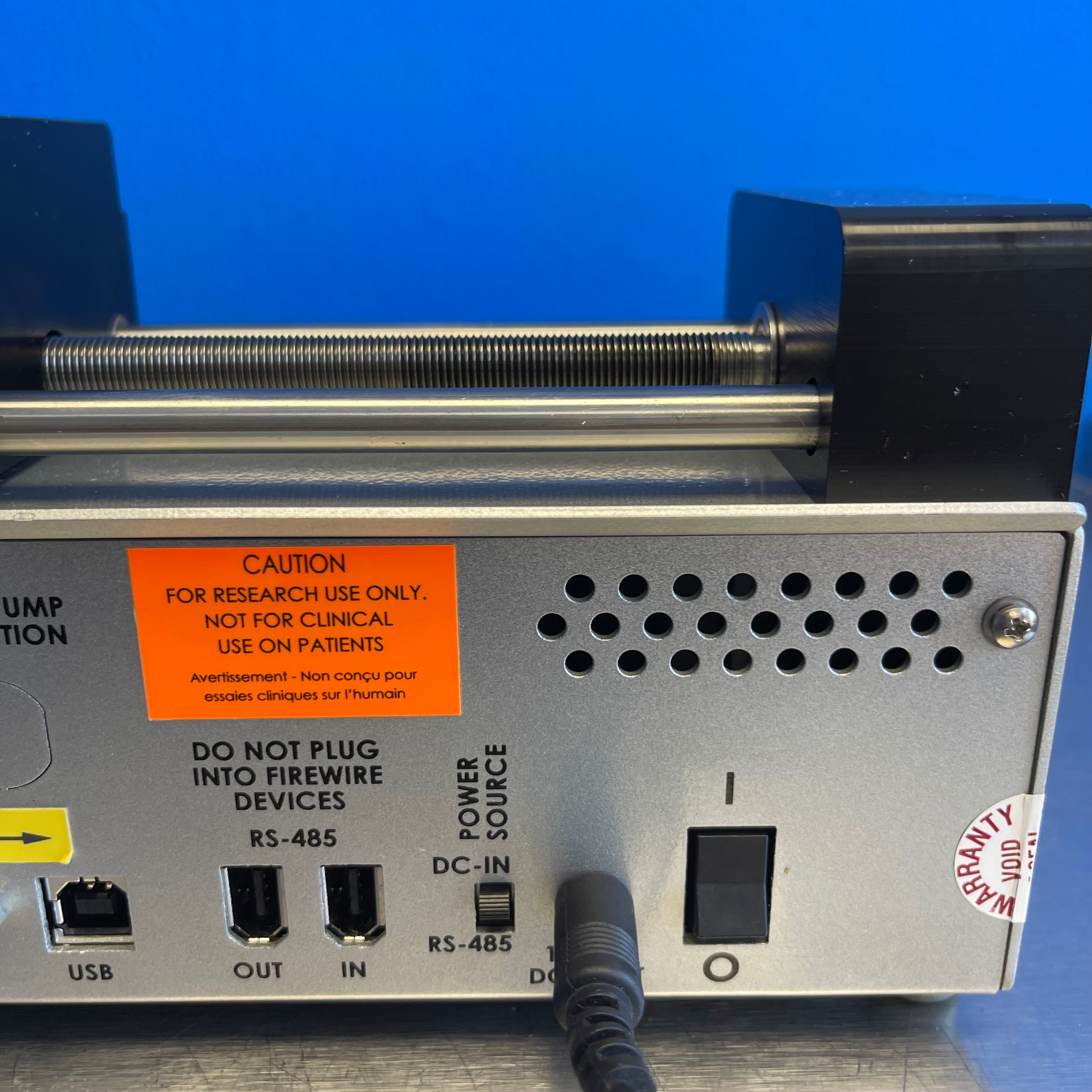

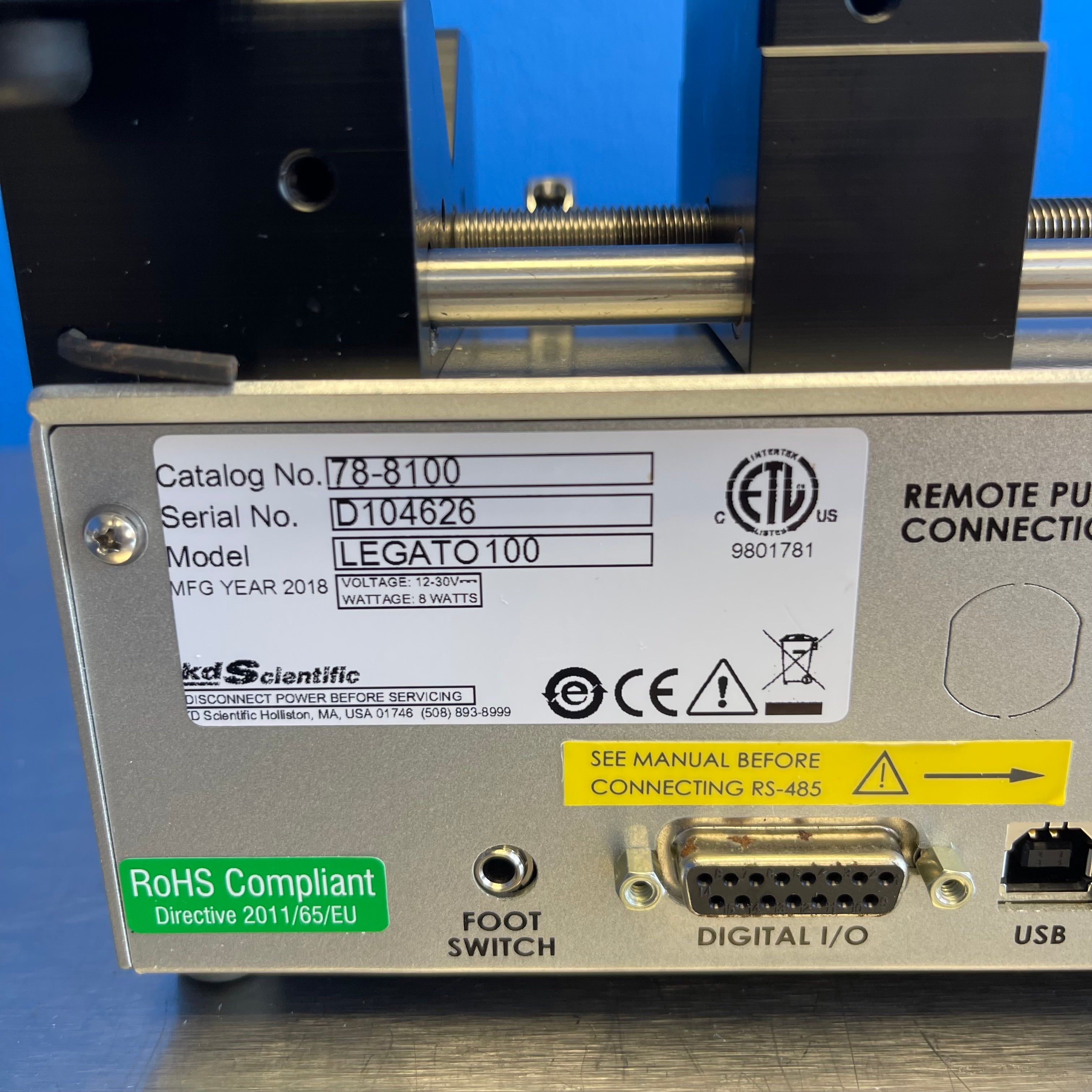

Connectors RS485 - IEEE-1394 6 pos
USB - Type B
I/O & TTL - 15 pin D-Sub Connector
Linear Force (Max) 13.6 kg (30 lb) @ 100% Force Selection
Drive Motor 0.9 Stepper Motor
Motor Drive Control Microprocessor with 1/16 microstepping
Number of Microsteps per one rev.of Lead Screw 15,360
Step Revolution 0.069 µm/step
Step Rate - Minimum 27.5 sec/µstep
Step Rate - Maximum 26 µsec/µstep
Pusher Travel Rate - Minimum 0.15 µm/min
Pusher Travel Rate - Maximum 159 mm/min
Power 100-240 VAC: 50/60 Hz, 50 W, 0.5 A fuse
Dimensions 22.6 x 19.05 x 15 cm (9 x 7.5 x 5 in)
Weight 2.66 kg (5.9 lb)
Operating Temperature 4 degree C to 40 degree C (40 degree F to 104 degree F)
Storage Temperature -10 degree C to 70 degree C (14 degree F to 158 degree F)
Humidity 20% to 80% RH non condensing
Mode of Operation Continuous
Classification Class 1
Pollution Degree 1
Installation Category II
Regulatory Certification CE, UL, CSA, CB Scheme, EU RoHS
SKU: BJBD.D14.1047/AEE/37.2M
"The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item."
